Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Status:
Active
Weight:
3.76
Unit Pack:
1
Pallet Quantity:
300
UPC Code:
680502140628
Brand:
Meritor Genuine

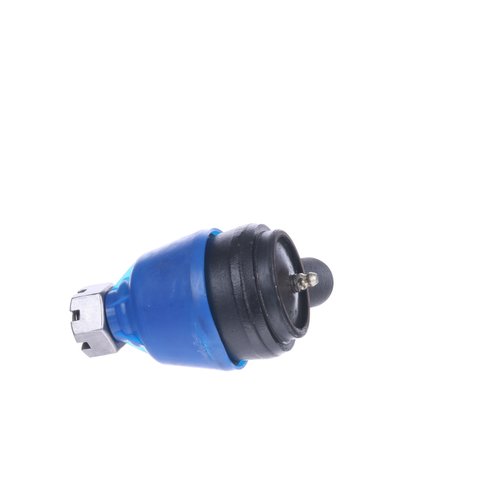

Marketing Group:
Tie Rod Ends
Large Taper Diameter:
1.102 in.
Rod Thread Diameter:
1.125 in.
Rod Threads per Inch:
12
Rod Thread Direction:
LH
VMRS Code:
011-001-031
Notes:
H.D. version of R230068
Small Taper Diameter:
0.967 in.
Stud Center to Rod End:
5.44 in.
Stud Thread Diameter:
0.875 in.
Stud Threads per Inch:
14
Style:
Roadside
Taper Length:
1.08 in.
| Part Number | Description |
|---|---|
| ROD ASSY-END & TIE | |
| ROD ASSY-END & TIE | |
| ROD ASSY-END & TIE |
| Xpress Facts: |
Steer Axle Product Information
|
Competitor
Part Number
Other
HRR230068, MERR230068, R230068, RAR230068, ROR230068, TDAR230068, TDAR230127
Model
