Product Details
Specifications
BOM
Where Used
Production BOM
Reference Material
Part Interchange
Visual Search
Status:
Active
Weight:
3.31
Unit Pack:
1
Pallet Quantity:
56
UPC Code:
737238769095
Brand:
Meritor Genuine
Marketing Group:
Dust Shields
Brake Diameter:
16.50 in.
Brake Model:
P and Q Series
Mount:
Screw/Cap Screw
Suspension Model:
Multiple
Application Information:

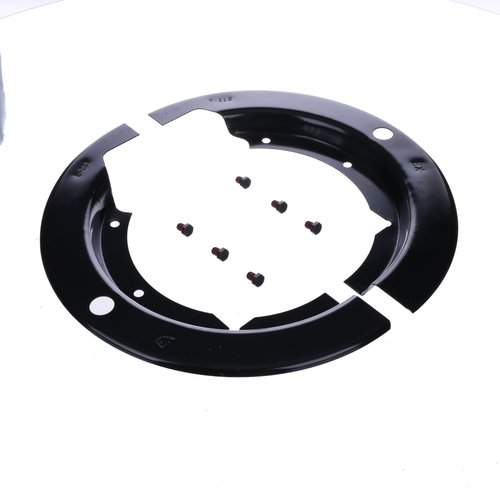

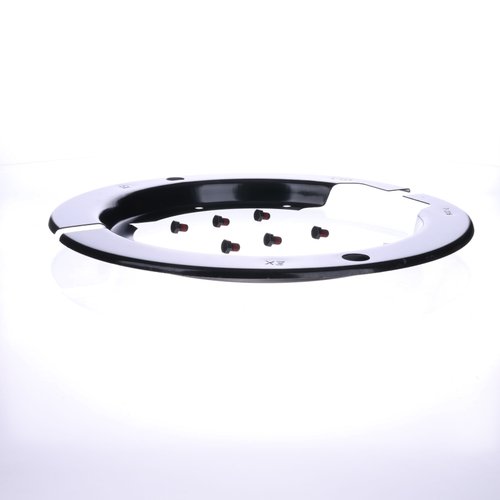

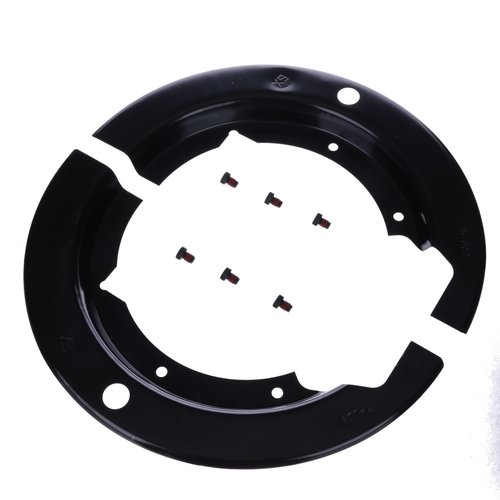

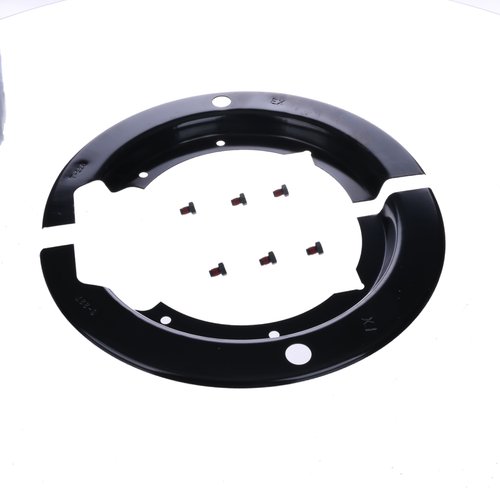

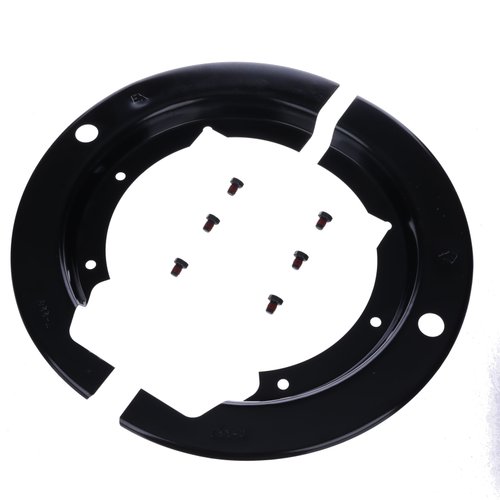

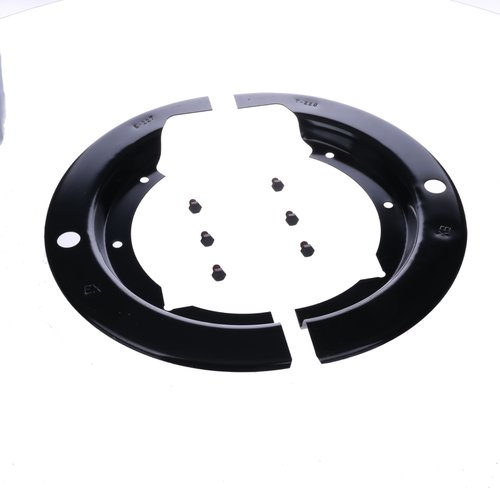

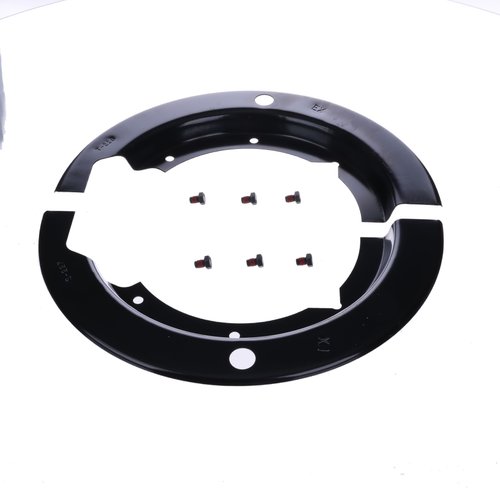

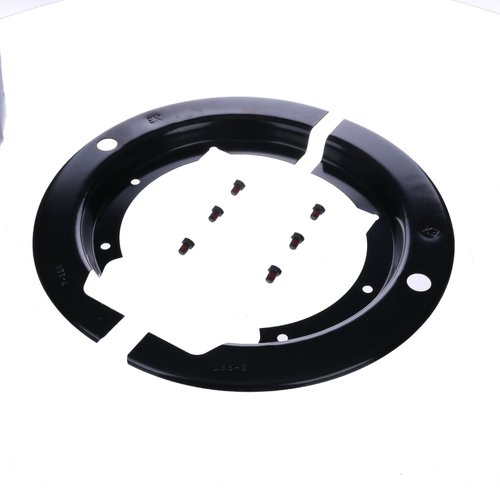

Contains 1) 3264S 227 1/2 dust shield, 1) 3264T 228 1/2 dust shield, 1) SUB-DUSTSHIELD02 CAPSCREW-SU
Brake Size:
16.50 in.
Offset:
1.25 in.
Inner Diameter:
10.687 in.
Outer Diameter:
18.12 in.
Hole Size:
0.4375 in.
VMRS Code:
013-017-000
Lip Height:
0.272 in.
Number of Mounting Holes:
06
Bill of Materials:
Part No
Quantity
Description
Bill of Materials:
Part No
Quantity
Description
| Xpress Facts: |
Wheel End Product Information
|
Competitor
Part Number
Other
8235MPS3979, ATIMPS3979, MPS3979RI, TDAMPS3979
