Status:
Active
Weight:
22.92
Unit Pack:
1
Pallet Quantity:
12
UPC Code:
884879715599
Brand:
Meritor Genuine
Marketing Group:
Service Chambers
Stroke:
2.50 in.

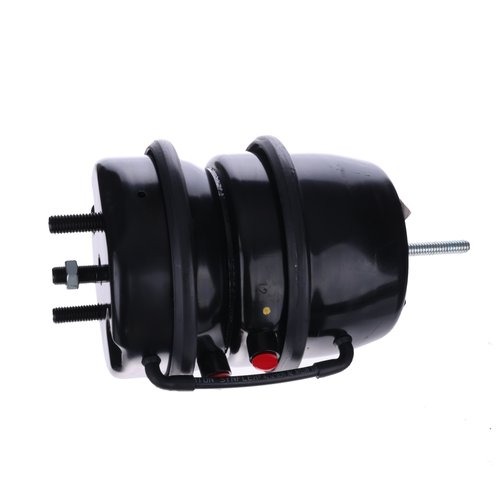

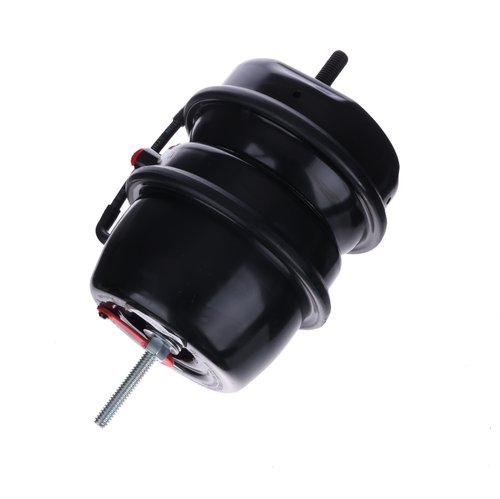

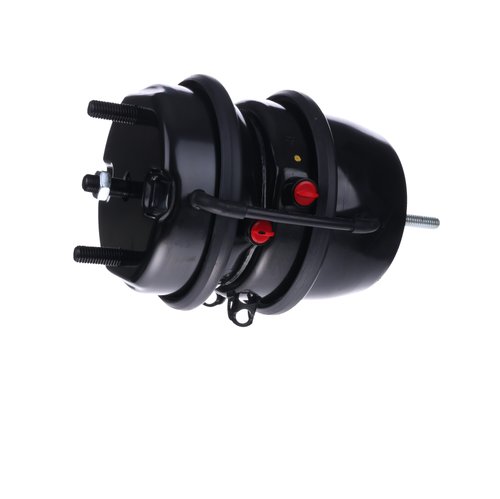

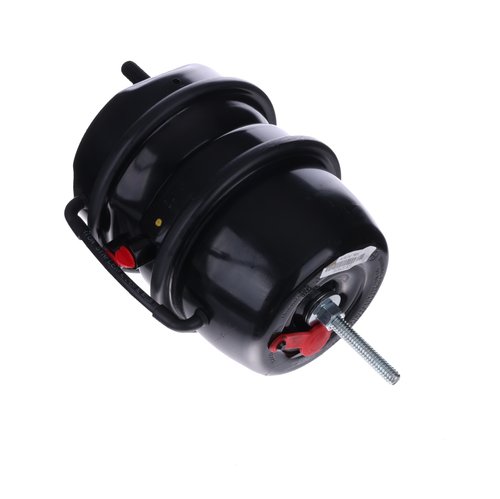

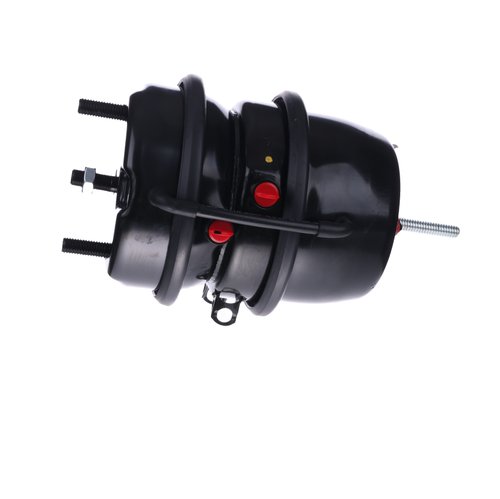

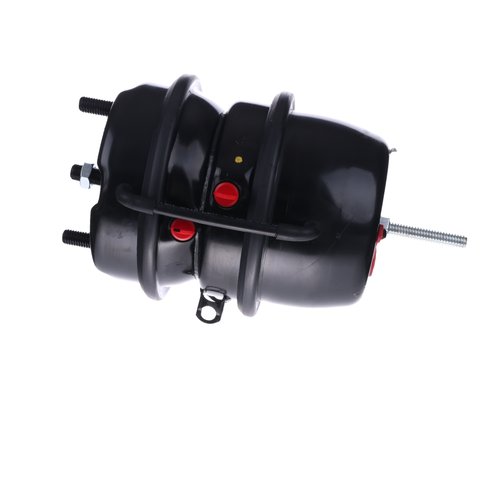

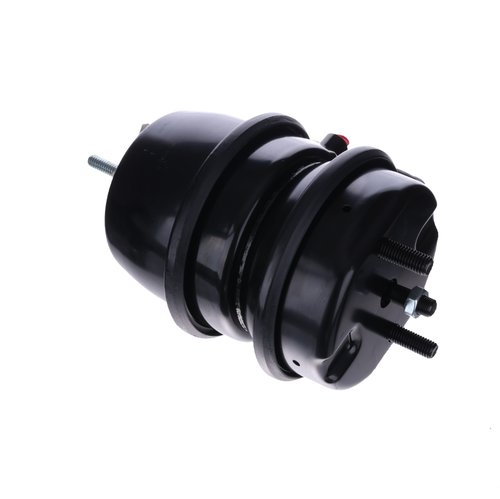

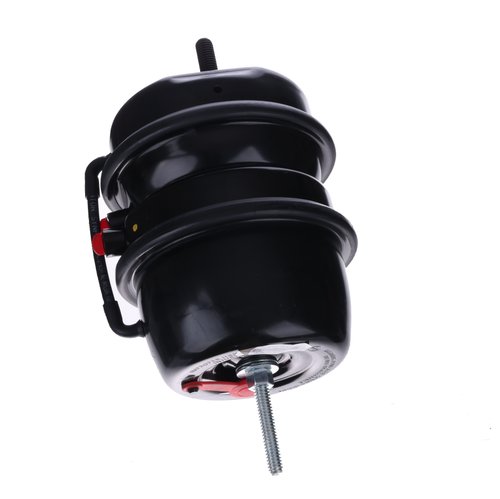

Chamber Type:
Spring Brake
Model:
Type 30/30
Outside Diameter:
209.0 mm
OE Mfg.:
TSE
Thread Diameter:
5/8" - 18 UNF
Length:
233.0 mm
Brake Type:
Drum
Clevis:
Threaded
Push Rod Length (Aftermarket):
1.45 in.
Style:
Omni
Application and General Information:
With Breather tube
VMRS Code:
013-004-036
Notes:
TSE recommends that a customer replace brake chambers in pairs, not one at a time, doing this will ensure brake balance.
Related Numbers:
TSE # 3030TL2-3579
Part Number | Description |
---|---|
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY | |
BRAKE ASSY |
Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
Sales Publication: |
SP1980 - The Complete Brake Job
|
Xpress Facts: |
Air Brake Product Information
|
Competitor
Part Number
TSE
3030TL23579
Other
8235E283276D30, TDAE283276D30
