Exclusive - Distributor Channel
Qty
Locate Dealer / Distributor
Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Alternate
Visual Search
Status:
Active
Weight:
3.02
Unit Pack:
2
Pallet Quantity:
168
UPC Code:
729374382641
Brand:
Euclid
Marketing Group:
U-Bolt Assembly
Type:
Round Bend
Length:
10.00 in.
Grade:
8
Thread Size:
3/4 in.-16
Thread Length:
3.00 in.
Nut:
E-3001
Notes:

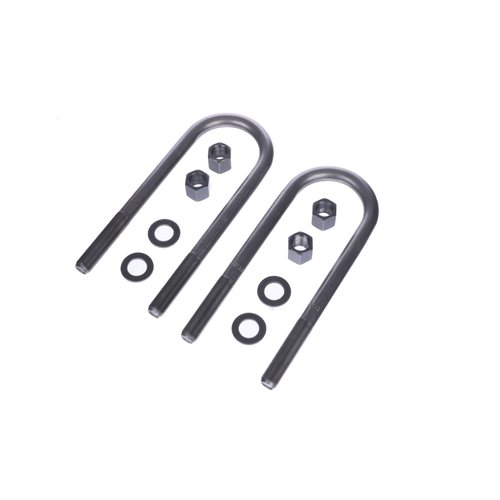

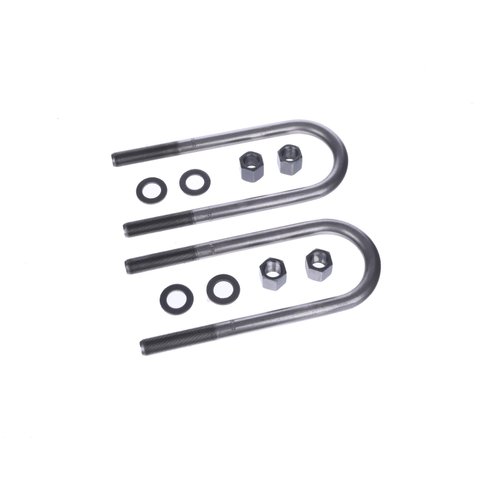

U-Bolt Assembly, Round Bend, 0.75 in.-16 Thd. x 3 in. Wide x 10 in. Long; OPTIONAL 3/4 in. Diameters U-BOLTS
VMRS Code:
016-005-007
Type Number:
01
Washer:
E-2545
Width:
3.00 in.
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Catalog: |
700E-SAF - SAF-Holland Neway Euclid Suspension Catalog
|
| Catalog: |
700E-TRK - Truck Euclid Suspension Catalog
|
| Sales Publication: |
SP2035 - Euclid Suspension Field Manual
|
| Xpress Facts: |
Suspension Product Information
|
Competitor
Part Number
Automann
AUB815110, AUBK8151104
Dayton Parts Batco
361482, 361482K, 361647, 361647K, 8U4609R, 8U4610R
Flagg
UT4609R
Volvo
V8057236
Other
R30U815110
Model
