E-5509

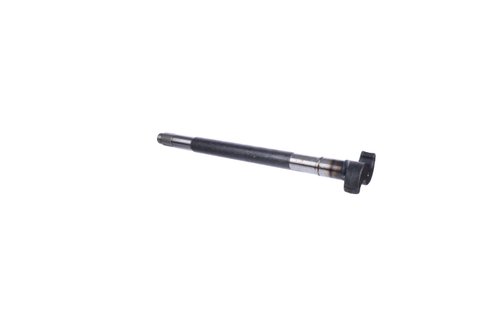

CAMSHAFT, RIGHT HAND

Submit

Cancel

Canada - In Stock

USA - In Stock

Exclusive - Distributor Channel

Add to Requisition List

Exclusive - Distributor Channel

Compare

Product Details

Specifications

Where Used

Reference Material

Part Interchange

Alternate

Visual Search

Status:

Active

Weight:

13.32

Unit Pack:

Pallet Quantity:

UPC Code:

729374195968

Brand:

Euclid

Marketing Group:

Camshafts

Camshaft Spline Count:

Brake Diameter:

16.50 in.

Left or Right:

Effective Length:

20.41 in.

Brake Type:

Q Plus

Head Type:

Bushing Journal Dia.:

1.62 in.

Camshaft Spline Dia.:

1.50 in.

Bushing Journal Length:

1.97 in.

Brake Hardware Kit:

E2769HD

Camshaft Repair Kit:

E9078 (Press-In Spider Bushing); E9079HD (Bolt-On Bushing)

Paired Camshaft:

E5508

Axle:

Trailer

OEM:

Meritor

VMRS Code:

013-017-004

Notes:

Can be used with cast or fabricated spiders and all spider bushings. E-9075 Washer must be used when using these camshafts with nylon or metal press-in spider bushings.

Where Used

Part Number	Description

Catalog:	100AB - Euclid Brake and Wheel End Catalog
Inspection Guideline:	TP1363 - Inspecting Foundation Cam Brakes
Maintenance Manual:	MM4 - Cam Brakes & ASAs Maintenance Manual
Sales Publication:	SP1980 - The Complete Brake Job
Sales Publication:	SP14137 - Brake Job Critical-Review Components
Xpress Facts:	Air Brake Product Information

Competitor

Part Number

BWP

M3171R

D and E

D&E5509, D&E9094

Dayton Parts Batco

04892042

Haldex

CS41113

Hercules

H10857R, HQ10353R

Sirco Brake

C870R

Spicer

17658, 17722

TW Heavy Vehicle Pts

CAM135R, CAM155R

Wabash Trailer

41426870

BRAND

Part Number

Additional Information

Meritor Genuine

2210F6870

Genuine OEM

Model

Meritor Q Series 16.5 x 7.0 Trailer Axle, 4515 with fabricated spider

Meritor Q Plus Series 16.5 x 7.0 Trailer Axle, 4718 with fabricated spider

Meritor Q Plus Series 16.5 x 7.0 Trailer Axle, 4707 with fabricated spider

Meritor P Series 16.5 x 7.0 Trailer Axle, 4515 with cast spider

Meritor Q Series 16.5 x 7.0 Trailer Axle, 4515 with cast spider
