Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Status:
Active
Weight:
4.48
Unit Pack:
1
Pallet Quantity:
300
UPC Code:
737238239529
Brand:
Meritor Genuine

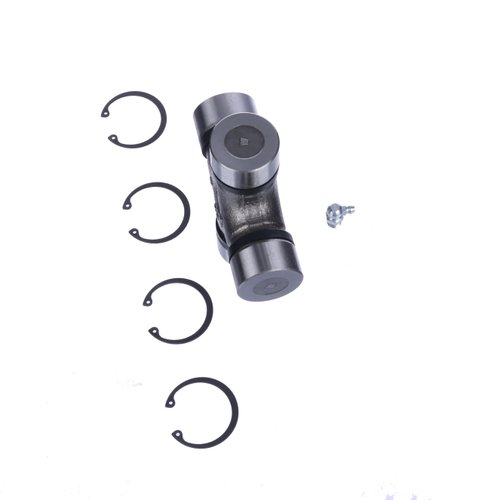

Marketing Group:
Outside Snap Rings
Cross Length:
4.747 in.
Series:
750N
Cross Trunnion Diameter:
1.161 in.
Bearing Diameter:
1.626 in.
Yoke Dimension:
5.19 in.
Snap Ring Dimension:
5.064 in.
Lube Fitting:
Y
VMRS Code:
024-002-046
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|---|
| 9530150573BOM | SHAFT ASSY-AXLE |
| 9530150575BOM | SHAFT ASSY-AXLE |
| Reference Material: |
For measuring guideline instructions: Click here
|
| Technical Bulletin: |
TP8416 - Straight Talk About U-Joints
|
| Xpress Facts: |
Driveline Product Information
|
Competitor
Part Number
Other
8235CP750N1, ATICP750N1, CP750N1RI, HRCP750N1, TDACP750N1, TWDCP750N1, UJ898CHR
Model
