Status:
Active
Weight:
7.00
Unit Pack:
1
Pallet Quantity:
40
UPC Code:
680502430637
Brand:
Meritor Genuine
Marketing Group:
Service Chambers
Thread Diameter:
5/8" - 18 UNF
Length:
111.0 mm
Outside Diameter:
177.8 mm
Stroke:
2.25 in.
Brake Type:
Drum
OE Mfg.:
MGM
Model:
Type 20
Chamber Type:
Brake Chamber
Clevis:
Threaded
Push Rod Length (Aftermarket):
8.00 in.
VMRS Code:
013-004-036
Related Numbers:
MGM Production # 1621064; MGM Aftermarket # 1621001
Application and General Information:

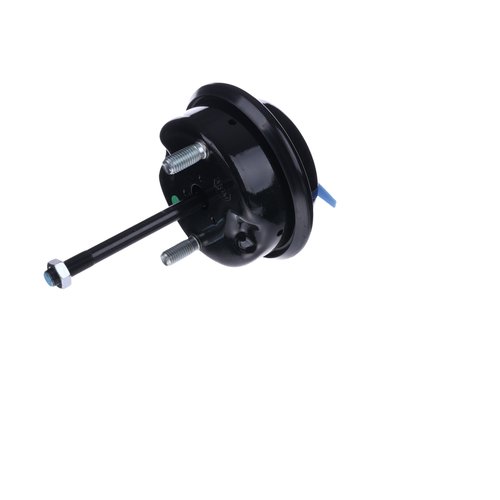

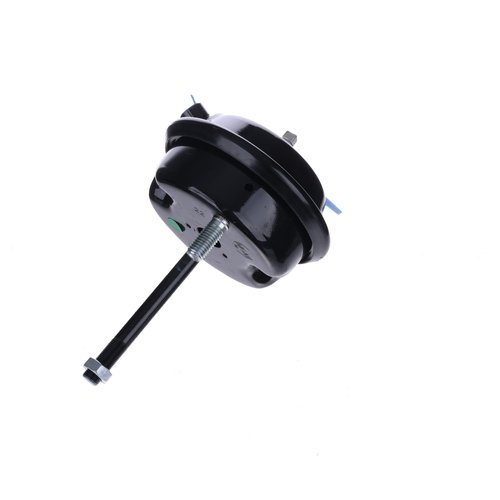

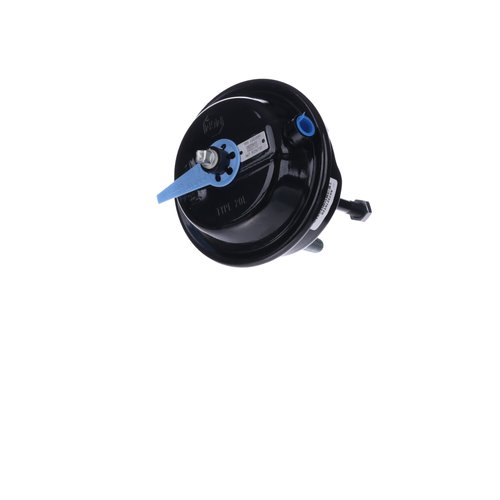

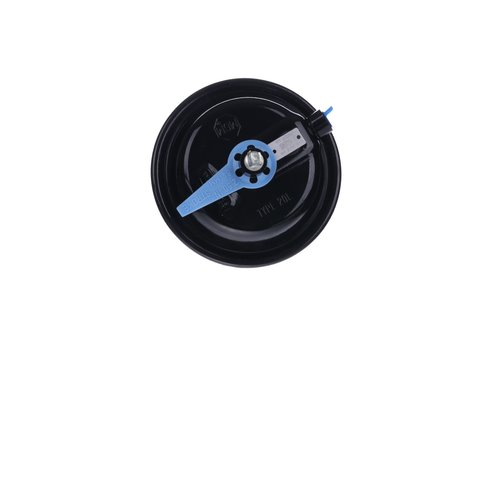

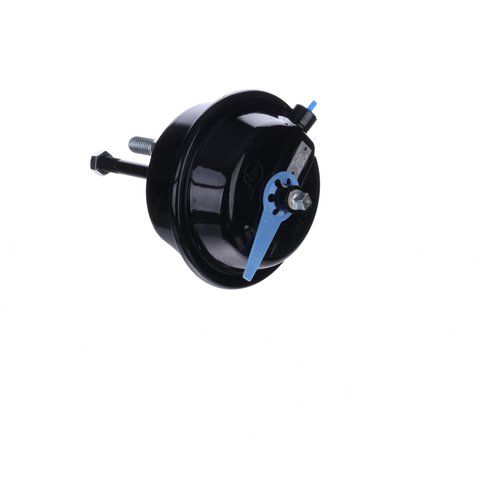

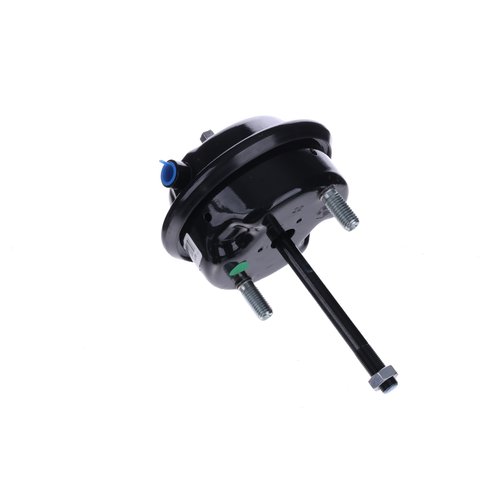

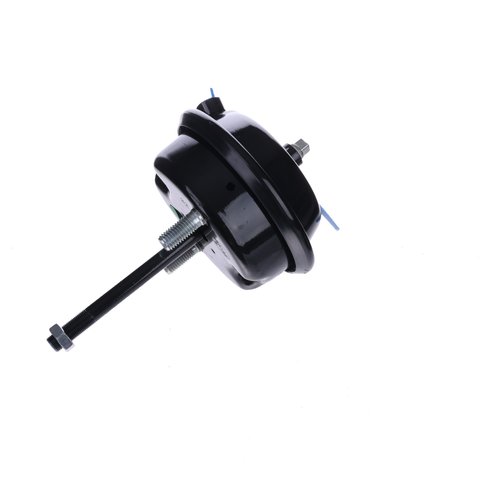

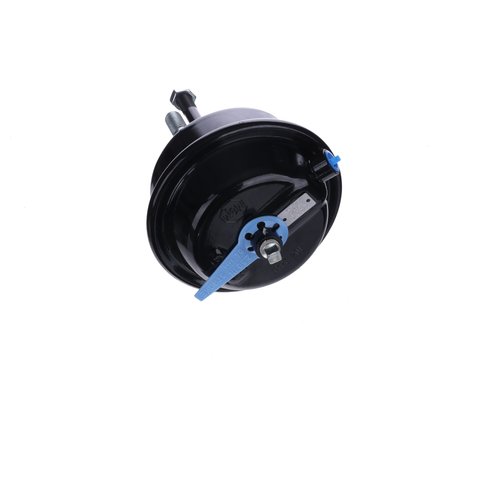

S-Cam Brakes (Drum) Long Stroke - Service Chamber
| Part Number | Description |
|---|---|
| MX14120HREVDANL36557BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL30430BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL55430BOM | AXLE ASSY-STEER. DRIVE |
| MX14120EVDANL30586BOM | AXLE ASSY-STEER, DRIVE |
| MX10120EVDANL39529BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL37529BOM | AXLE ASSY-STEER, DRIVE |
| MX10120EVDANL39586BOM | AXLE ASSY-STEER, DRIVE |
| MX12120EVDANL58529BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL63586BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL15488BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL55529BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL56529BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL59614BOM | AXLE ASSY-STEER.DRIVE |
| MX12120HREVDANL13488BOM | AXLE ASSY-STEER. DRIVE |
| MX14120EVDANL6513BOM | AXLE ASSY-STEER. DRIVE |
| MX14120EVDANL6529BOM | AXLE ASSY-STEEL, DRIVE |
| MX14120EVDANL6557BOM | AXLE ASSY-STEER. DRIVE |
| MX14120EVDANL1614BOM | AXLE ASSY-STEER, DRIVE |
| MX12120EVDANL52529BOM | AXLE ASSY-STEER, DRIVE |
| MX12120EVDANL37513BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL46488BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL53529BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL53614BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL47488BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL47513BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL51614BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL47614BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL52557BOM | AXLE ASSY-STEER, DRIVE |
| MX12120EVDANL53430BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL53488BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL48488BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL51529BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL51557BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL53513BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL47529BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL52586BOM | AXLE ASSY-STEER, DRIVE |
| MX12120EVDANL53586BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL14614BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL55488BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL86557BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL12557BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL14557BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL55614BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL56557BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL11488BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL16557BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL20557BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL9557BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL55513BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL15557BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL11557BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL10614BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL8488BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL55456BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL55557BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL87557BOM | AXLE ASSY-STEER. DRIVE |
| MX12120EVDANL52614BOM | AXLE ASSY-STEER, DRIVE |
| MX12120HREVDANL11614BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL12488BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL20614BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL9488BOM | AXLE ASSY-STEER. DRIVE |
| MX12120HREVDANL9614BOM | AXLE ASSY-STEER. DRIVE |
| MX14120EVDANL56557BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL21456BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL31557BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL30456BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL35456BOM | AXLE ASSY-STEER, DRIVE |
| MX10120EVDANL31529BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL31614BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL32488BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL35614BOM | AXLE ASSY-STEER, DRIVE |
| MX10120EVDANL36456BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL39557BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL35513BOM | AXLE ASSY-STEER, DRIVE |
| MX10120EVDANL35557BOM | AXLE ASSY-STEER, DRIVE |
| MX10120EVDANL31513BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL31586BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL35529BOM | AXLE ASSY-STEER, DRIVE |
| MX10120HREVDANL11557BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL30488BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL35488BOM | AXLE ASSY-STEER, DRIVE |
| MX10120EVDANL35586BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL38513BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL36430BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL36488BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL30513BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL32513BOM | AXLE ASSY-STEER, DRIVE |
| MX10120HREVDANL10557BOM | AXLE ASSY-STEER. DRIVE |
| MX10120HREVDANL10614BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL32430BOM | AXLE ASSY-STEER, DRIVE |
| MX10120EVDANL32614BOM | AXLE ASSY-STEER, DRIVE |
| MX10120EVDANL32557BOM | AXLE ASSY-STEER, DRIVE |
| MX10120EVDANL35430BOM | AXLE ASSY-STEER, DRIVE |
| MX10120EVDANL36529BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL32529BOM | AXLE ASSY-STEER, DRIVE |
| MX10120EVDANL32586BOM | AXLE ASSY-STEER, DRIVE |
| MX10120EVDANL37488BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL38488BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL42430BOM | AXLE ASSY-STEER. DRIVE |
| MX10120EVDANL42488BOM | AXLE ASSY-STEER. DRIVE |
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Xpress Facts: |
Air Brake Product Information
|
Competitor
Part Number
MGM Brakes
1621001, 1621064
Other
8235A673276T20, TDAA673276T20
