Product Details
Specifications
BOM
Where Used
Production BOM
Reference Material
Part Interchange
Status:
Active
Weight:
4.10
Unit Pack:
1
Pallet Quantity:
56
UPC Code:
680502318911
Brand:
Meritor Genuine
Marketing Group:

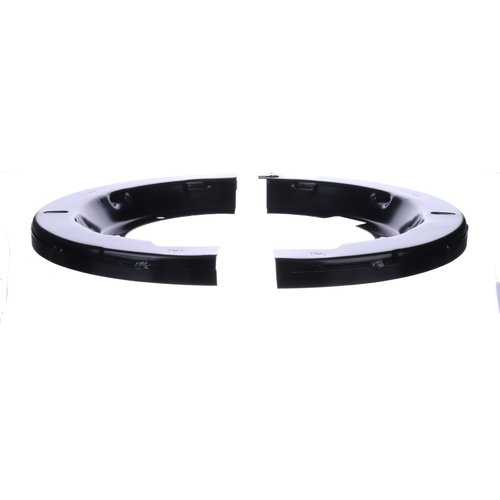

Dust Shields
Brake Diameter:
16.50 in.
Brake Model:
Q Plus
Mount:
Screw/Cap Screw
Application Information:
Contains 1) 3236W2701 & 1) 3236F2710
Brake Size:
16.50 in. X 5.00 in. & 6.00 in.
Brake Shoe Width:
5.00 in. & 6.00 in.
Outer Diameter:
18.12 in.
VMRS Code:
013-017-000
Lip Height:
1.12 in with optional; 0.62 in. and/or 0.75 in.
Number of Mounting Holes:
04
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|---|
| QP316561984BOM | BRAKE ASSY |
| QP416561894BOM | BRAKE ASSY |
| QP416561986BOM | BRAKE ASSY |
| QP416561960BOM | BRAKE ASSY |
| QPX16561570BOM | BRAKE ASSY |
| QPX16561796BOM | BRAKE ASSY |
| QPX16561706BOM | BRAKE ASSY |
Bill of Materials:
Part No
Quantity
Description
| Xpress Facts: |
Wheel End Product Information
|
Competitor
Part Number
Other
8235A23236W2701, TDAA23236W2701
Model
