Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Status:
Active
Weight:
2.80
Unit Pack:
1
Pallet Quantity:
56
UPC Code:
737238544814
Brand:
Meritor Genuine

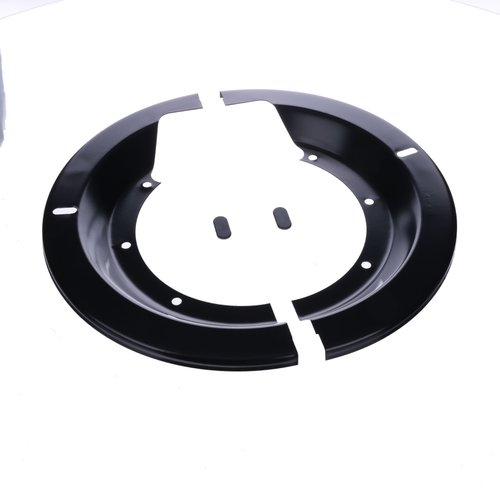

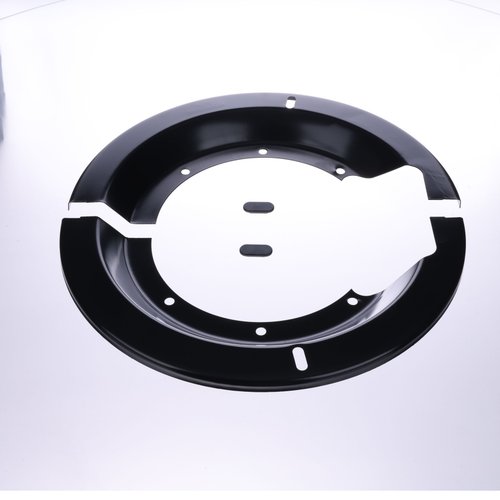

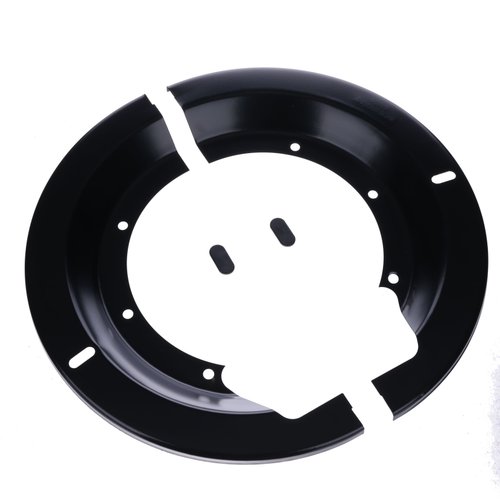

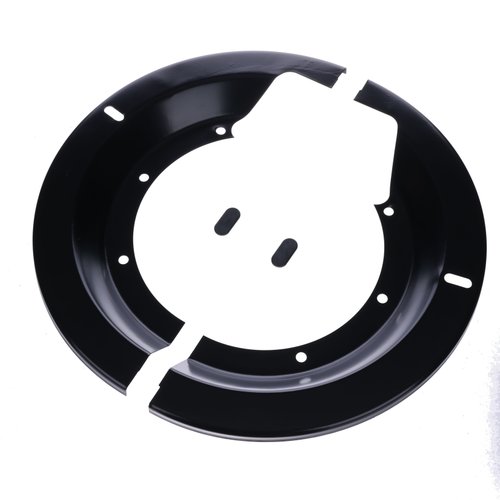

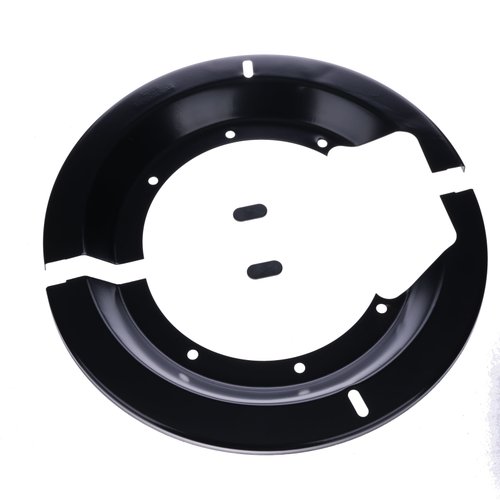

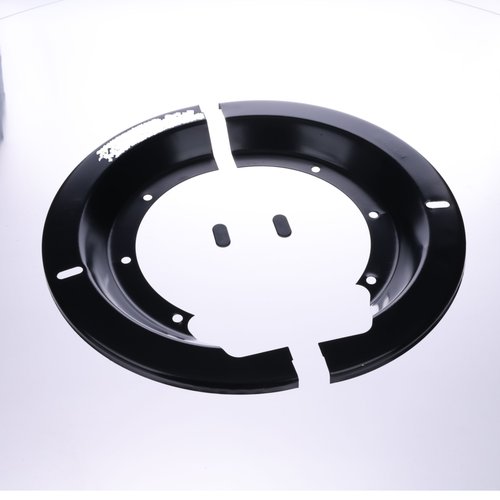

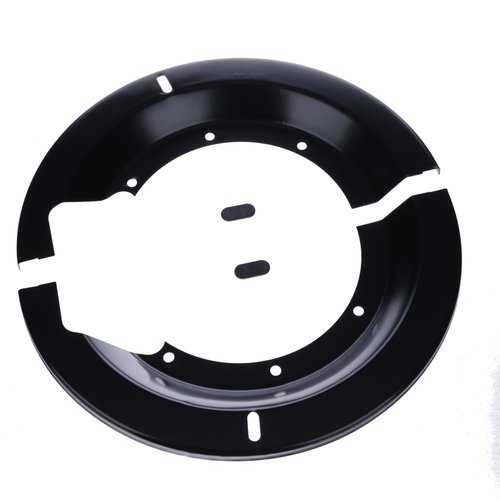

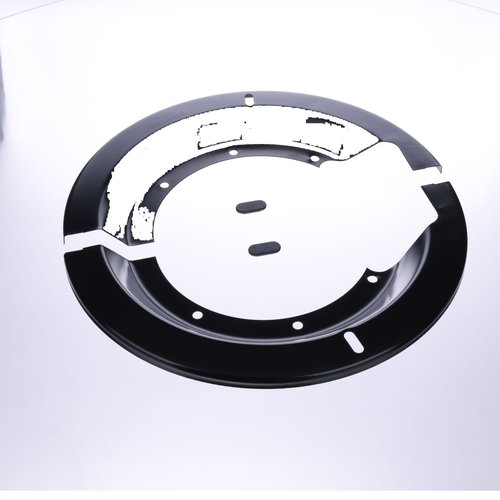

Marketing Group:
Dust Shields
Brake Model:
P and Q Series
Brake Diameter:
16.50 in.
Mount:
Screw/Cap Screw
Suspension Model:
Multiple
Brake Shoe Width:
7.00 in.
Brake Size:
16.50 in. x 7.00 in.
Application Information:
Use on 16-1/2 in. x 7 in. P and Q brakes. / Could use A1 in place or the A11 Level the only difference is The A11 has a rubber inspection plug. The A1 level does not.
Offset:
1.50 in.
Inner Diameter:
10.125 in.
Outer Diameter:
18.125 in.
Hole Size:
0.4375 in.
VMRS Code:
013-017-000
Lip Height:
0.656 in.
Number of Mounting Holes:
06
View:
Complete
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Xpress Facts: |
Wheel End Product Information
|
Competitor
Part Number
Other
8235A113236Q2123, MERA113236Q2123, TDAA113236Q2123
Model
