Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Alternate
Visual Search
Status:
Active
Weight:
2.80
Unit Pack:
1
Pallet Quantity:
56
UPC Code:
737238146544
Brand:
Meritor Genuine
Marketing Group:

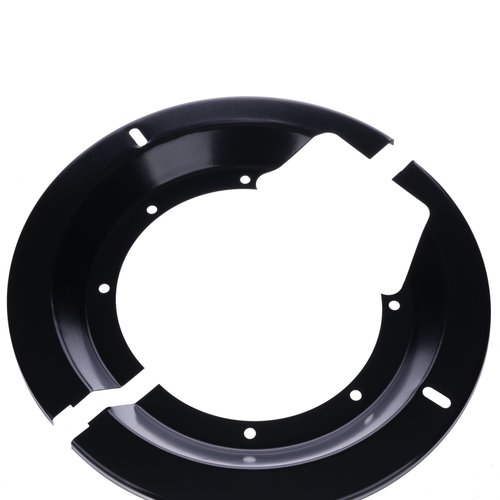

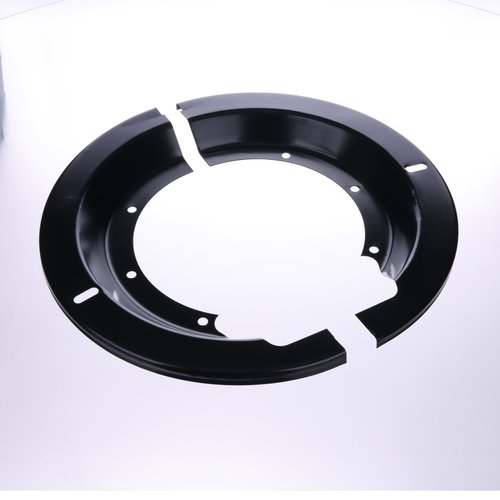

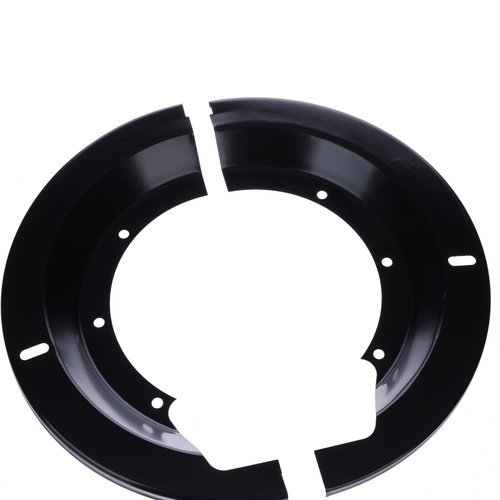

Dust Shields
Brake Diameter:
16.50 in.
Brake Model:
P and Q Series
Mount:
Screw/Cap Screw
Suspension Model:
Multiple
Offset:
1.50 in.
Application Information:
Use on 16-1/2 in. x 7 in. P and Q brakes.
Brake Shoe Width:
7.00 in.
Brake Size:
16.50 in. x 7.00 in.
Inner Diameter:
10.125 in.
Outer Diameter:
18.125 in.
Hole Size:
0.4375 in.
VMRS Code:
013-017-000
Lip Height:
0.656 in.
Number of Mounting Holes:
06
View:
Complete
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|---|
| MPS3980BOM | GROUP-MPS |
| BG16574779BOM | BRAKE ASSY |
| BG16575477BOM | BRAKE ASSY |
| BG16575259BOM | BRAKE ASSY |
| BG16575219BOM | BRAKE ASSY |
| BG16575443BOM | BRAKE ASSY |
| BG16575137BOM | BRAKE ASSY |
| BG16574777BOM | BRAKE ASSY |
| BG16574845BOM | BRAKE ASSY |
| BG16575485BOM | BRAKE ASSY |
| BG16575135BOM | BRAKE ASSY |
| BG16575067BOM | BRAKE ASSY |
| BG16575059BOM | BRAKE ASSY |
| BG16574988BOM | BRAKE ASSY |
| BG16575519BOM | BRAKE ASSY |
| BG16575487BOM | BRAKE ASSY |
| BG16574987BOM | BRAKE ASSY |
| BG16574780BOM | BRAKE ASSY |
| BG16575478BOM | BRAKE ASSY |
| BG16574778BOM | BRAKE ASSY |
| BG16575486BOM | BRAKE ASSY |
| BG16575444BOM | BRAKE ASSY |
| BG16575138BOM | BRAKE ASSY |
| BG16575220BOM | BRAKE ASSY |
| BG16575260BOM | BRAKE ASSY |
| BG16574846BOM | BRAKE ASSY |
| BG16575136BOM | BRAKE ASSY |
| BG16575068BOM | BRAKE ASSY |
| BG16575520BOM | BRAKE ASSY |
| BG16575060BOM | BRAKE ASSY |
| BG16575488BOM | BRAKE ASSY |
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Xpress Facts: |
Wheel End Product Information
|
Competitor
Part Number
Dana
331487, 331488
Transit Parts
TP8433
Other
02517, 590684C91, 6777763, 8235A13236Q2123, A13236Q2123RI, HRA13236Q2123, L3542, MERA13236Q2123, ROA13236Q2123, S13954, SASQ2123, TDAA13236Q2123, TWDA13236Q2123, TWDDSH601G
