Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Alternate
Status:
Active
Weight:
3.2
Unit Pack:
1
Pallet Quantity:
56
UPC Code:
737238132394
Brand:
Meritor Genuine
Marketing Group:

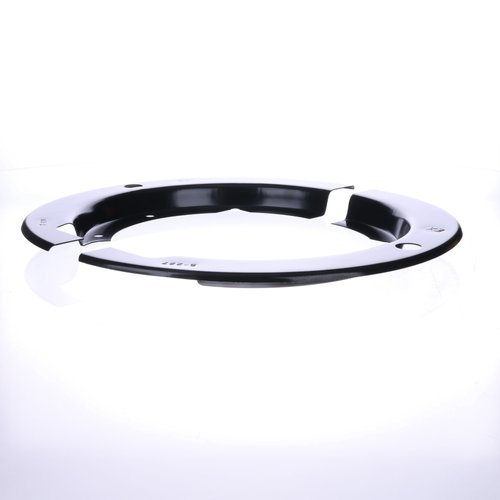

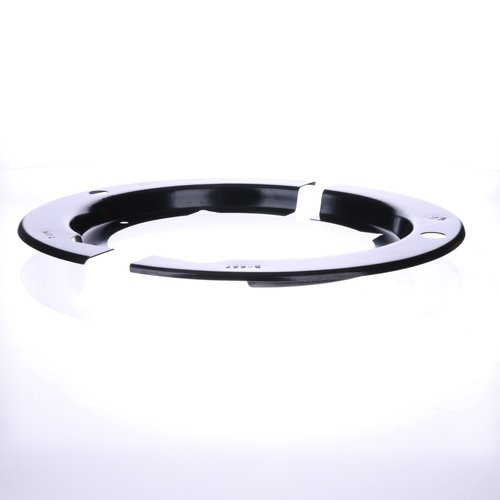

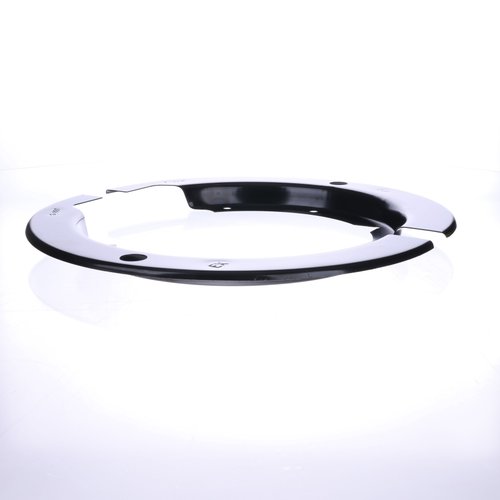

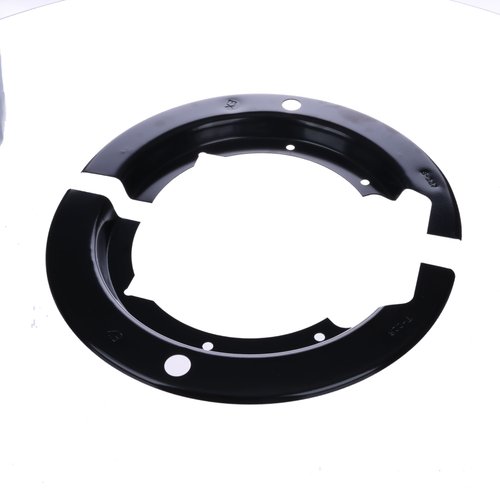

Dust Shields
Brake Diameter:
16.50 in.
Brake Model:
P and Q Series
Mount:
Screw/Cap Screw
Suspension Model:
Multiple
Brake Size:
16.50 in. X 6.00 in. & 7.00 in.
Offset:
1.25 in.
Brake Shoe Width:
5.00 in. & 6.00 in.
Application Information:
Use on 16-1/2 in. x 6 in. P brakes and 16-1/2 in. x 5 in. Q brakes.
Inner Diameter:
10.687 in.
Outer Diameter:
18.125 in.
Hole Size:
0.4375 in.
VMRS Code:
013-017-000
Lip Height:
0.2656 in.
Number of Mounting Holes:
06
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|---|
| QP41655234BOM | BRAKE ASSY |
| QP216561425BOM | BRAKE ASSY |
| QP41655233BOM | BRAKE ASSY |
| QP41655856BOM | BRAKE ASSY |
| QP41655855BOM | BRAKE ASSY |
| MPS3979BOM | GROUP-MPS |
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Xpress Facts: |
Wheel End Product Information
|
Competitor
Part Number
Other
12361127, 1651832C91, 20520963, 8235A3264S227, A3264S227RI, ATIA3264S227, HRA3264S227, MERA3264S227, ROA3264S227, TDA3264S227, TDA3264T228, TDAA3264S227, TWDA3264S227
Model
