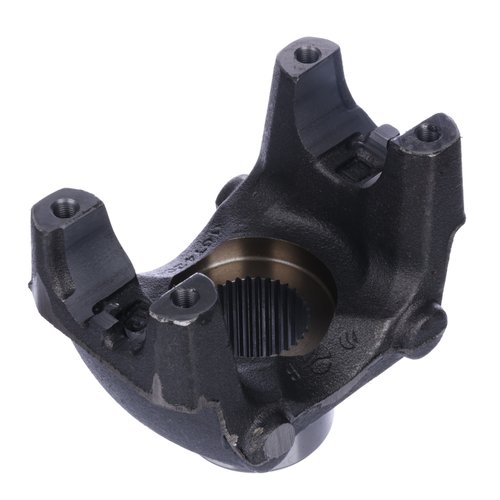

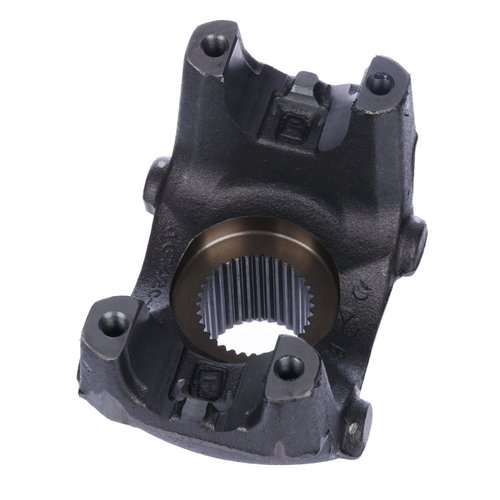

Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Status:
Active
Weight:
9.25
Unit Pack:
1
Pallet Quantity:
100
UPC Code:
737238306184
Brand:
Meritor Genuine
Marketing Group:
16N Series
Series:
16N
Number of Splines:
34
Spline Diameter:
1.774 in.
Hub Diameter:
2.50 in.
Spline Length:
2.25 in.
Center To End:
4.88 in.
Distance Between Nibbs:
5.31 in.
Use U-Joint Kit:
M674X
Joint Angle:
28 degrees
Kit Mtg. Holes:
TH
Bearing Cap Diameter:
1.88 in.
VMRS Code:
024-001-003
Use Kit:
KT16SB
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Reference Material: |
For measuring guideline instructions: Click here
|
| Xpress Facts: |
Driveline Product Information
|
Competitor
Part Number
Dana
5455711
Other
823516N455711, ATI16N455711, TDA16N455711
Model
