R806015A

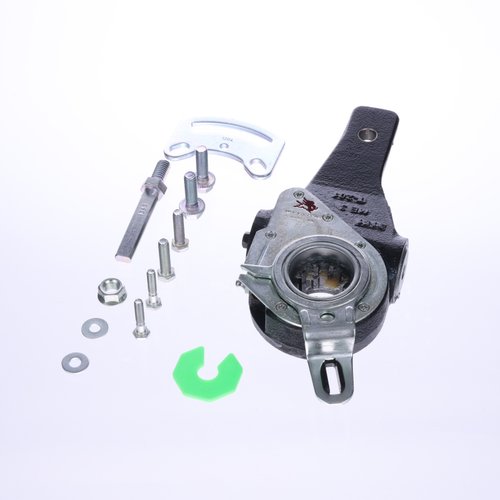

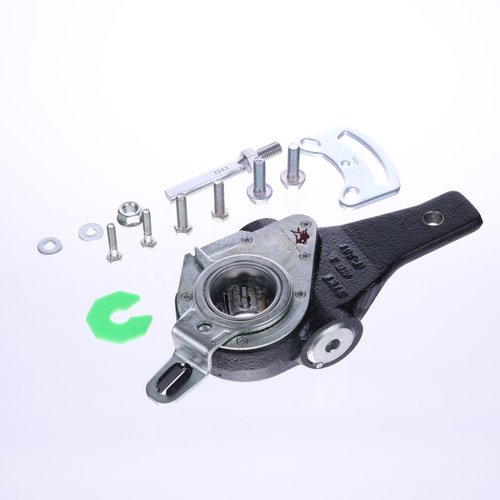

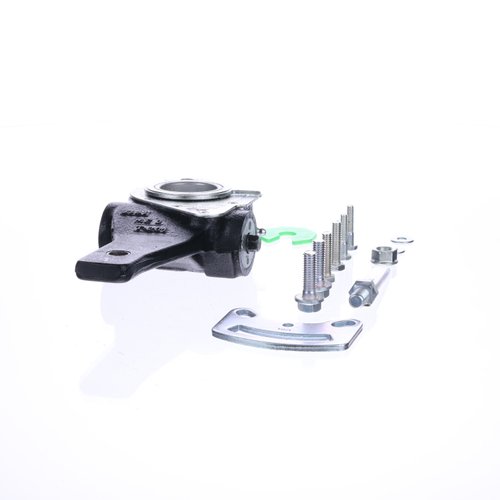

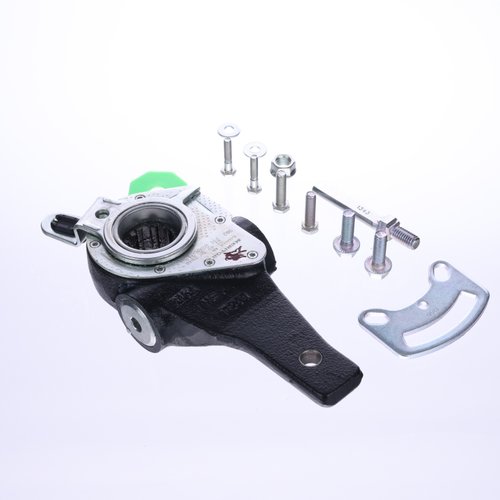

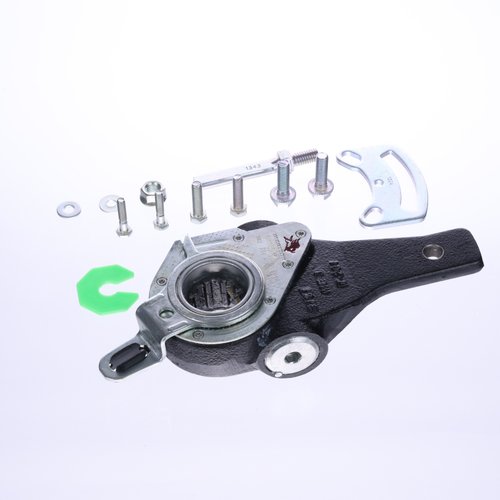

AIR BRAKE - ASA - HALDEX AA1 STYLE
Submit
Cancel
Locate Dealer / Distributor
Product Details
Specifications
Where Used
Reference Material
Part Interchange
Alternate
Visual Search
Status:
Active
Weight:
8.15
Unit Pack:
1
Pallet Quantity:
144
UPC Code:
884879829784
Brand:
Meritor
Marketing Group:
Haldex
Model:
AA1 Replacement
Production Part Number:
409-10675
Arm Length:
6.00 in.
Slack Spline Diameter:
1.50 in.
Slack Spline Count:
10
Aftermarket Extended Warranty - Linehaul:
2 Years / 200K Miles
Application:
Trailer
Type:
Unhanded
OEM:
Haldex
Brake Size:
16.50 in.
OE or AllMakes:
ALL MAKES
Sensing Type:
Clearance
Angle:
0 degrees
Bushing Inside Diameter:
0.50 in.
Notes:
Standard version. Premium version is M807015. Self-setting alternative is M808015.
VMRS Code:
013-017-005
Service Part Number:
400-10216
Clevis Type:
Unclevised
Maximum Torque Rating:
Less than 15 foot pounds
Related Bracket Number:
R810308
| Part Number | Description |
|---|
| Catalog: |
100AB - Euclid Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP1639 - Meritor Clearance-Sensing Automatic Slack Adjusters
|
| Sales Publication: |
SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
|
| Technical Bulletin: |
TP0545 - Installation and Maintenance of the Meritor Clearance Sensing Automatic Slack Adjuster
|
| Warranty Information: |
SP16165 - Meritor Aftermarket Warranty
|
| Xpress Facts: |
Air Brake Product Information
|
Competitor
Part Number
Alliance
ABPN42AS40010216
Automann
1331041
Fleetrite
FLT40010216
Haldex
40010216, 40910675
MEI
4W8025
Sirco Brake
SA10216
Volvo
3946098
Other
8235R806015A, MERR806015A, R806015, TDAR806015A
