Product Details
Specifications
BOM
Where Used
Production BOM
Reference Material
Part Interchange
Alternate

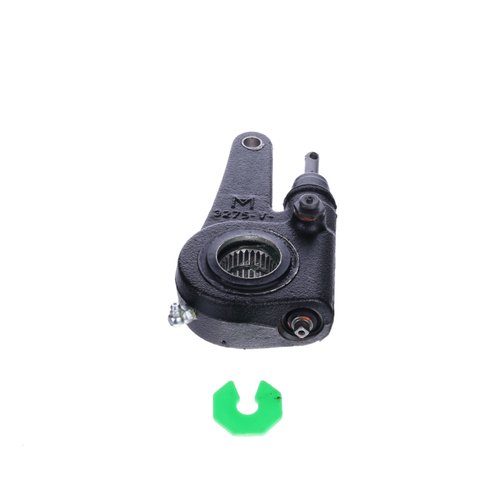

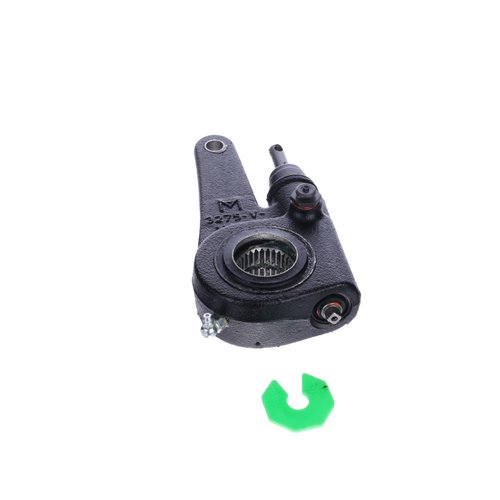

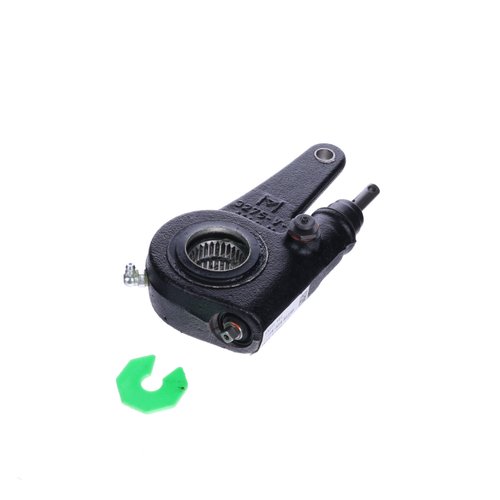

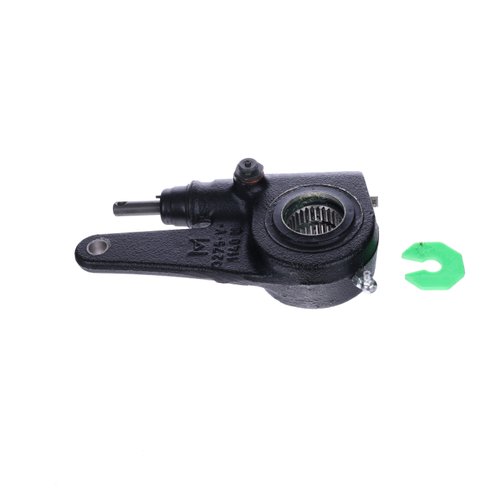

Status:
Active
Weight:
6.25
Unit Pack:
1
Pallet Quantity:
280
UPC Code:
737238837268
Brand:
Meritor Genuine
Marketing Group:
Meritor
Clevis Type:
Unclevised
Piston:
Yellow Piston
Type:
Type 1
Arm Length:
6.00 in.
Slack Spline Diameter:
1.50 in.
Slack Spline Count:
28
Aftermarket Extended Warranty - Heavy Se:
3 Years / Unlimited Miles
Sensing Type:
Stroke
Aftermarket Extended Warranty - Off-High:
3 Years / Unlimited Miles
OEM:
Meritor
Aftermarket Extended Warranty - Linehaul:
5 Years / 500K Miles
Model:
Meritor
Aftermarket Extended Warranty - General:
3 Years / Unlimited Miles
Chamber Sizes:
30
Notes:
Yellow piston. Drum brake.
VMRS Code:
013-017-005
Maximum Torque Rating:
More than 45 inch pounds
Related Clevis Kit:
R810009
Bill of Materials:
Part No
Quantity
Description
Bill of Materials:
Part No
Quantity
Description
| Catalog: |
100AB - Euclid Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP15102 - Meritor Stroke Sensing Automatic Slack Adjusters for the Aftermarket
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
|
| Video: |
Meritor Stroke ASA Video
|
| Warranty Information: |
SP16165 - Meritor Aftermarket Warranty
|
| Xpress Facts: |
Air Brake Product Information
|
Competitor
Part Number
Crane Carrier
TK803054
Other
0034255, 12471691, 3947652, 8235R803054, 9628R803054, ATIR803054, ATXR802486, HRR803054, MERR803054, PLR802486, R802486, R803054RI, RBR802486, RIR803054, ROR802486, ROR803054, RWR803054, TDAR803054, TWDR803054
Model
