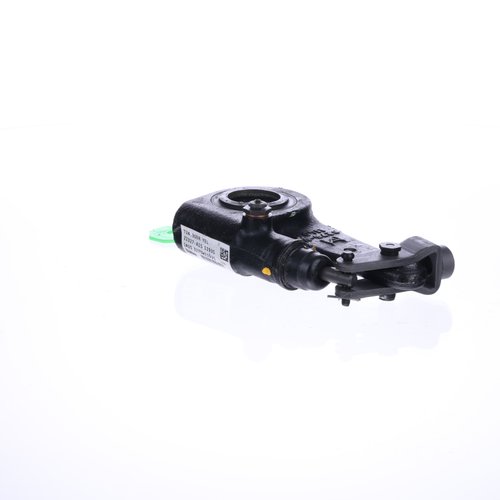

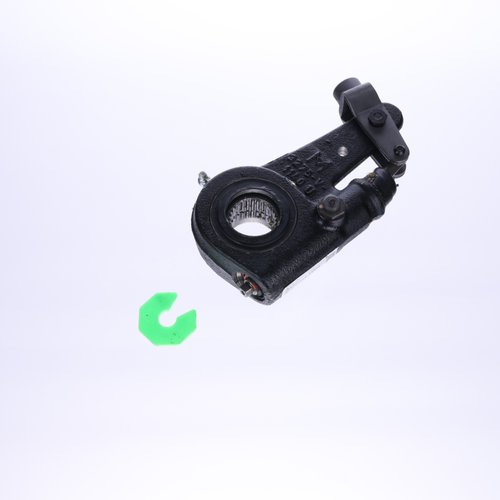

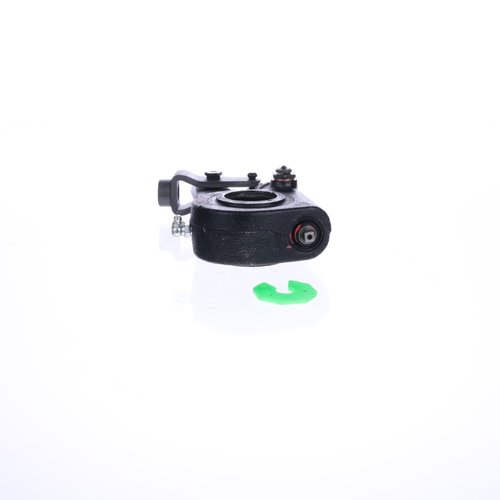

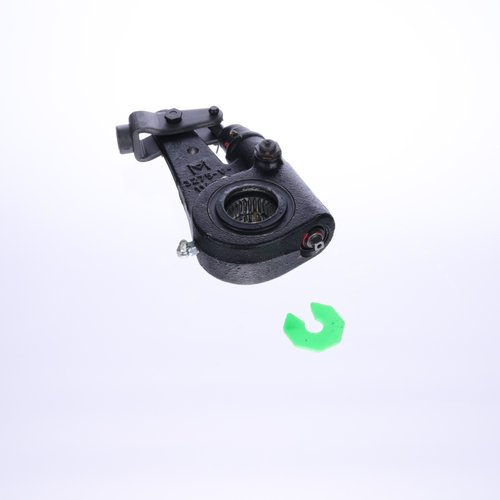

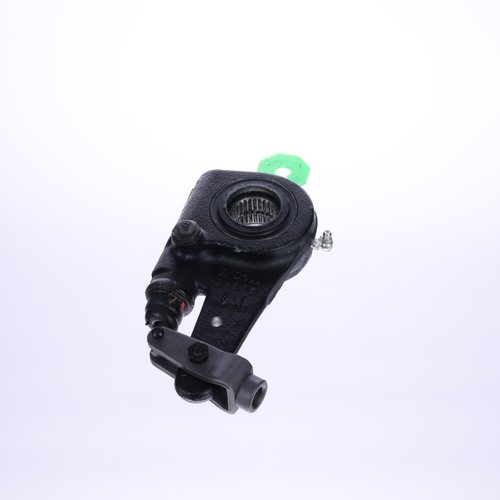

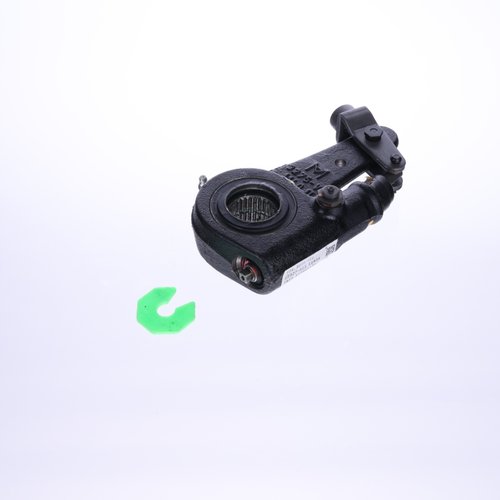

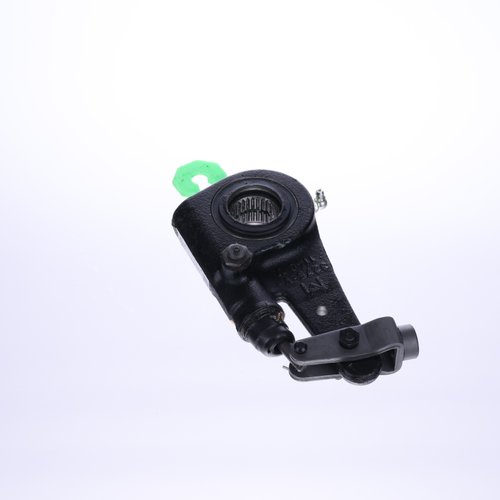

Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Visual Search
Status:
Active
Weight:
6.89
Pallet Quantity:
280
UPC Code:
737238671404
Brand:
Meritor Genuine
Marketing Group:
Meritor
Production Part Number:
A20-3275-W-1193
Type:
Type 1
Clevis Type:
Straight
Piston:
Yellow Piston
Arm Length:
5.50 in.
Slack Spline Diameter:
1.50 in.
Slack Spline Count:
28
Aftermarket Extended Warranty - Off-High:
3 Years / Unlimited Miles
Aftermarket Extended Warranty - General:
3 Years / Unlimited Miles
Aftermarket Extended Warranty - Heavy Se:
3 Years / Unlimited Miles
Model:
Meritor
Aftermarket Extended Warranty - Linehaul:
5 Years / 500K Miles
OEM:
Meritor
Sensing Type:
Stroke
OE or AllMakes:
OE
Chamber Sizes:
24
VMRS Code:
013-017-005
Notes:
Yellow piston. Drum brake.
Clevis Thread Diameter:
0.625 in.
Clevis Threads per inch:
18
Maximum Torque Rating:
More than 45 inch pounds
Related Clevis Kit:
R810019
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
|
| Sales Publication: |
SP15102 - Meritor Stroke Sensing Automatic Slack Adjusters for the Aftermarket
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Video: |
Meritor Stroke ASA Video
|
| Warranty Information: |
SP16165 - Meritor Aftermarket Warranty
|
| Xpress Facts: |
Air Brake Product Information
|
Competitor
Part Number
Other
8235R802648, ATIR802648, TDAR802648
Model
