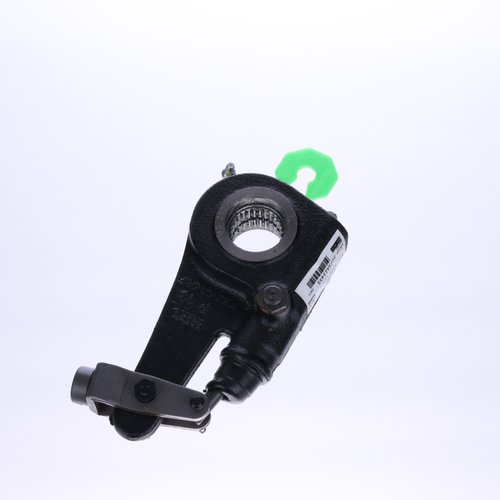

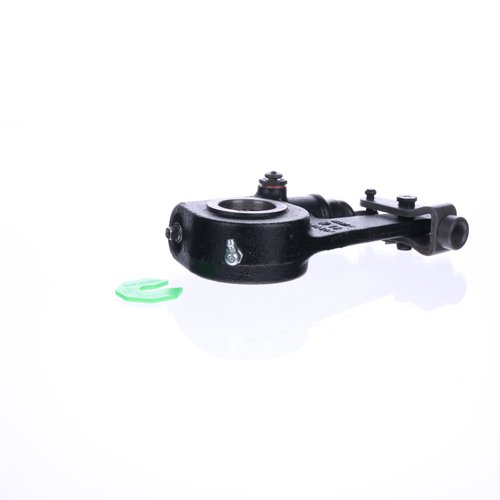

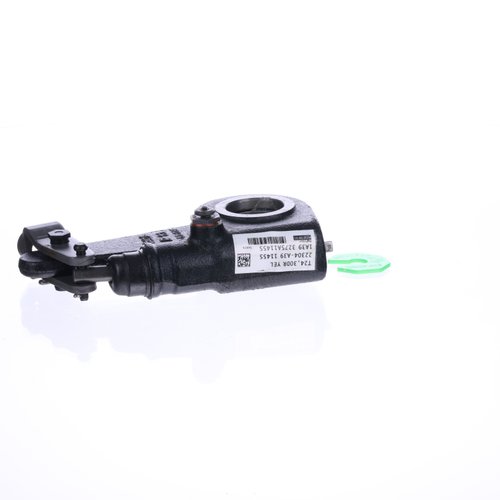

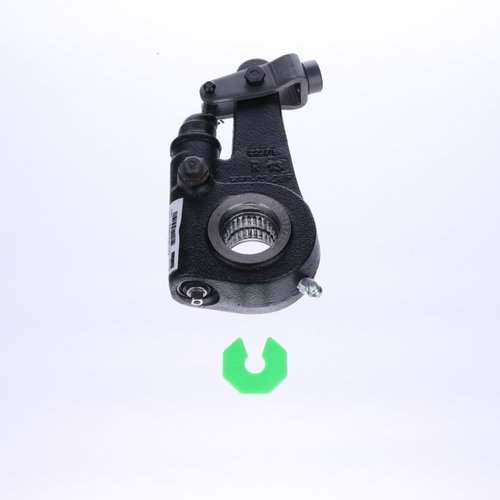

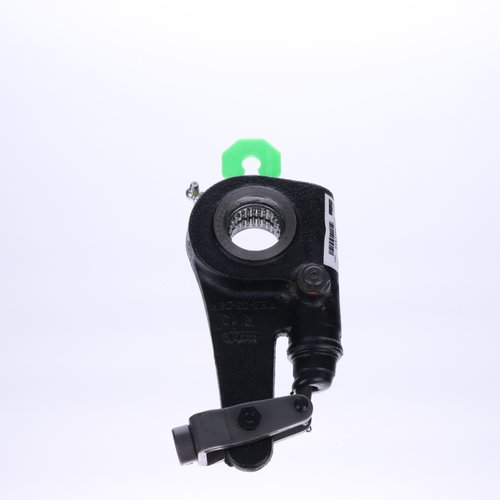

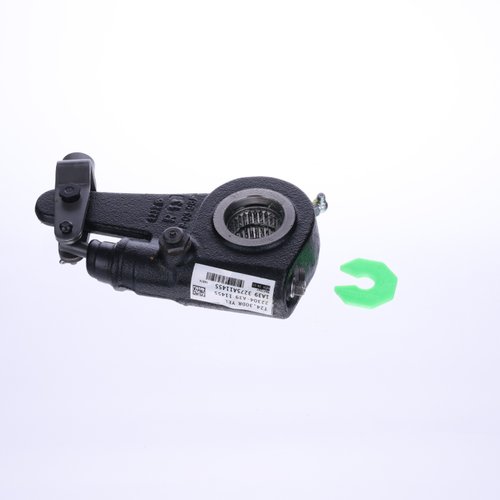

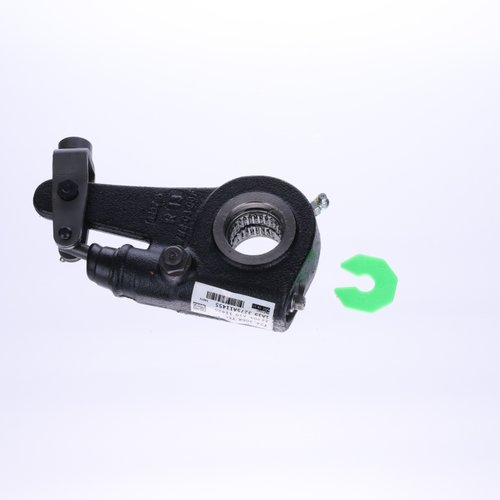

Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Alternate
Visual Search
Status:
Active
Weight:
6.83
Unit Pack:
1
Pallet Quantity:
280
UPC Code:
737238562641
Brand:
Meritor Genuine
Marketing Group:
Meritor
Type:
Type 2
Piston:
Yellow Piston
Production Part Number:
A41-3275-A-1145
Clevis Type:
Straight
Arm Length:
5.50 in.
Slack Spline Diameter:
1.50 in.
Slack Spline Count:
28
Aftermarket Extended Warranty - Heavy Se:
3 Years / Unlimited Miles
OEM:
Meritor
Aftermarket Extended Warranty - Linehaul:
5 Years / 500K Miles
Aftermarket Extended Warranty - Off-High:
3 Years / Unlimited Miles
Aftermarket Extended Warranty - General:
3 Years / Unlimited Miles
Model:
Meritor
OE or AllMakes:
OE
Sensing Type:
Stroke
Chamber Sizes:
30
Notes:
Yellow piston. Drum brake.
VMRS Code:
013-017-005
Clevis Thread Diameter:
0.625 in.
Clevis Threads per inch:
18
Maximum Torque Rating:
More than 45 inch pounds
Related Unclevised Number:
R803049
Related Clevis Kit:
R810019
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Sales Publication: |
SP15102 - Meritor Stroke Sensing Automatic Slack Adjusters for the Aftermarket
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
|
| Video: |
Meritor Stroke ASA Video
|
| Warranty Information: |
SP16165 - Meritor Aftermarket Warranty
|
| Xpress Facts: |
Air Brake Product Information
|
Competitor
Part Number
Other
TDAA413275A1145, TDAR802447, TWDR802447, V1090265, ZBRAS1040, ZBRAS1140, ZDRR802447, ZZCS56040
