Genuine OEM

R802421

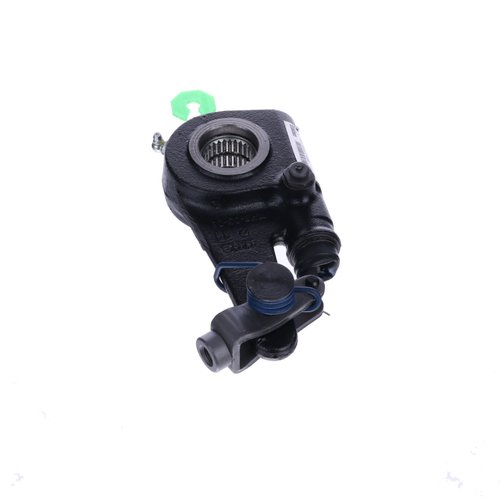

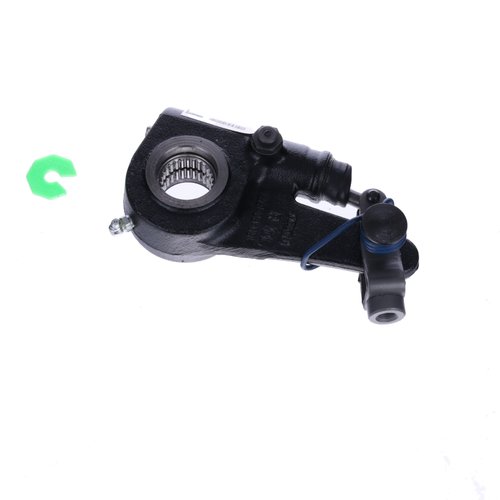

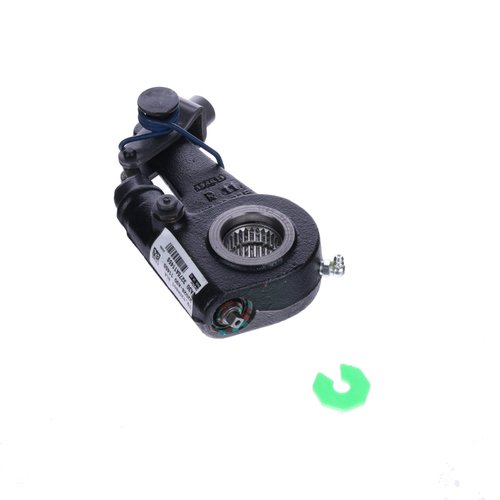

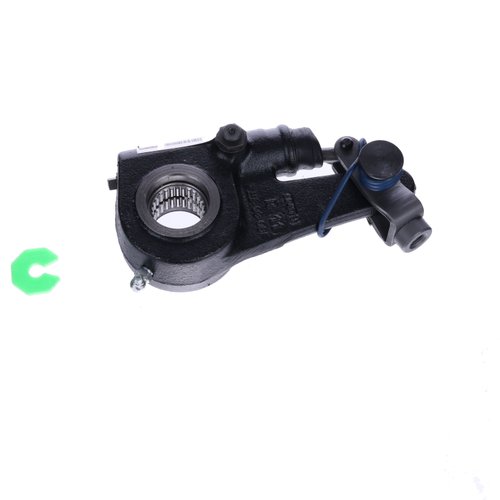

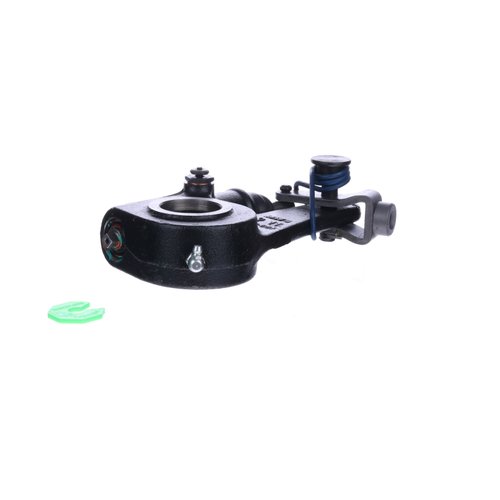

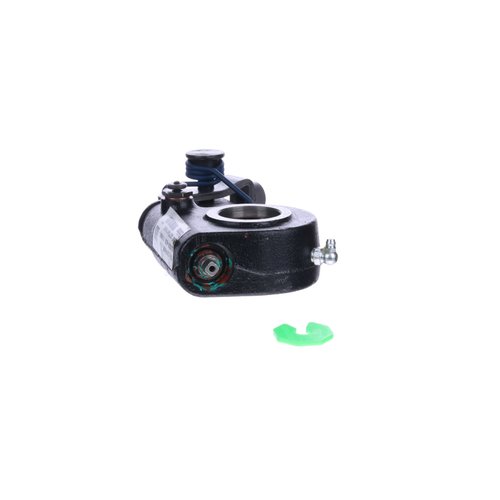

AIR BRAKE - ASA - MERITOR

Feedback/Comments

Submit

Cancel

Feedback/Comments

Submit

Cancel

Canada - Out of Stock

USA - In Stock

Add to Requisition List

Qty

Locate Dealer / Distributor

Compare BOM Compare

Product Details

Specifications

BOM

Where Used

Reference Material

Part Interchange

Alternate

Visual Search

Status:

Active

Weight:

7.10

Unit Pack:

Pallet Quantity:

280

UPC Code:

737238562504

Brand:

Meritor Genuine

Marketing Group:

Meritor

Type:

Type 2

Production Part Number:

A57-3275-A-1145

Clevis Type:

Straight

Arm Length:

5.50 in.

Slack Spline Diameter:

1.50 in.

Slack Spline Count:

OEM:

Meritor

OE or AllMakes:

Aftermarket Extended Warranty - Linehaul:

5 Years / 500K Miles

Aftermarket Extended Warranty - Heavy Se:

3 Years / Unlimited Miles

Sensing Type:

Stroke

Model:

Meritor

Aftermarket Extended Warranty - General:

3 Years / Unlimited Miles

Aftermarket Extended Warranty - Off-High:

3 Years / Unlimited Miles

Chamber Sizes:

VMRS Code:

013-017-005

Notes:

Black piston. Drum and disc brakes.

Clevis Thread Diameter:

0.50 in.

Clevis Threads per inch:

Maximum Torque Rating:

More than 45 inch pounds

Related Unclevised Number:

R803045

Related Clevis Kit:

R810014LW

Bill of Materials:

Expand

Collapse

Download to Excel

Part No

Quantity

Description

M810500

1

AUTOMATIC SLACK ADJUSTER TOOL
A30 3275A1145S

1

AIR BRAKE - AUTOMATIC SLACK ADJUSTER
A57 3275A1145

1

AUTOMATIC SLACK ADJUSTER WITHOUT CLEVIS
MPS 4046

1

AIR BRAKE - INTERNAL VERSION OF R810014LW
- 1245M1079

  1

  AIR BRAKE - CLEVIS
- SUB ASA HDWE 0 3

  1

  AUTOMATIC SLACK ADJUSTERS SUBASSEMBLY KIT
  - 2258Q1239

    1

    AIR BRAKE - AUTOMATIC SLACK SPRING
  - 19X1085

    1

    AUTOMATIC SLACK ADJUSTER HARDWARE - PIN
  - K 248

    1

    AIR BRAKE - MISCELLANOUS BRAKE HARDWARE
  - 19X127

    1

    WHEEL END - HARDWARE - CLEVIS PIN
  - K 235

    1

    AIR BRAKE - MISCELLANOUS BRAKE HARDWARE

Where Used

Part Number	Description

Catalog:	PB8857 - Meritor Drum Brake and Wheel End Catalog
Inspection Guideline:	TP1363 - Inspecting Foundation Cam Brakes
Maintenance Manual:	MM4 - Cam Brakes & ASAs Maintenance Manual
Sales Publication:	SP15102 - Meritor Stroke Sensing Automatic Slack Adjusters for the Aftermarket
Sales Publication:	SP1980 - The Complete Brake Job
Sales Publication:	SP14137 - Brake Job Critical-Review Components
Sales Publication:	SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
Warranty Information:	SP16165 - Meritor Aftermarket Warranty
Video:	Meritor Stroke ASA Video
Xpress Facts:	Air Brake Product Information
