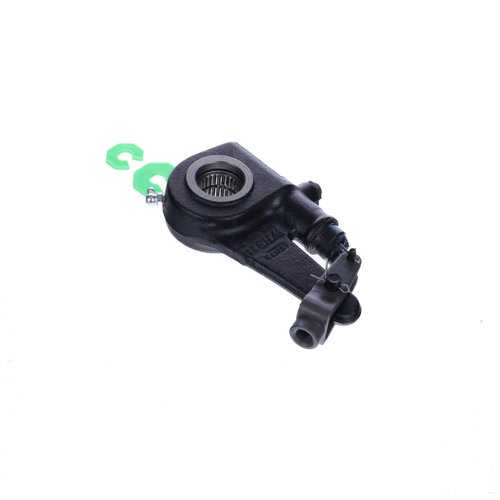

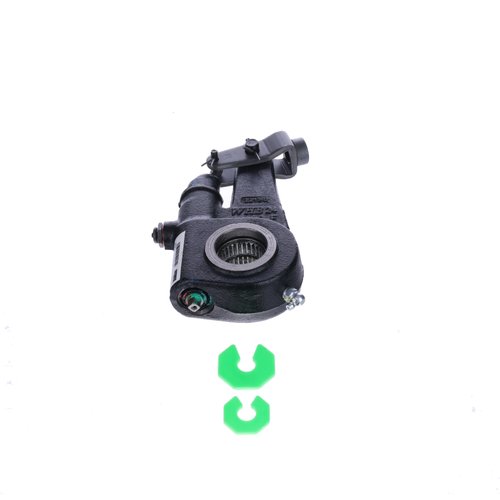

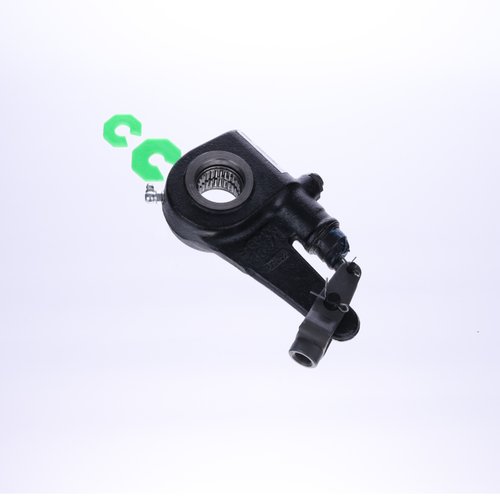

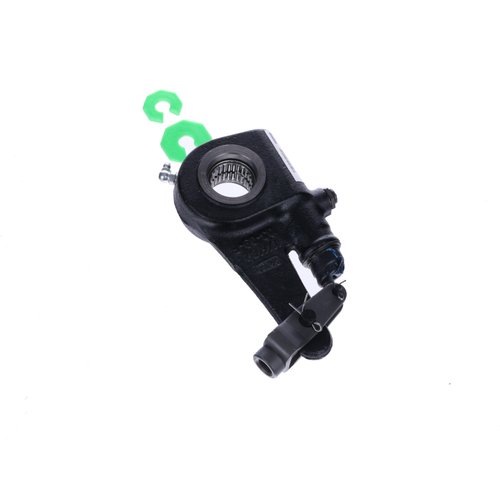

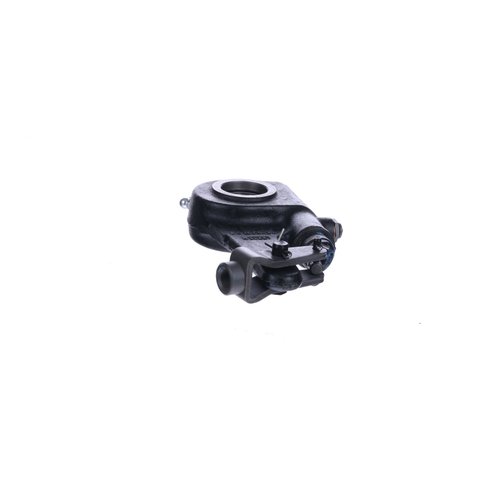

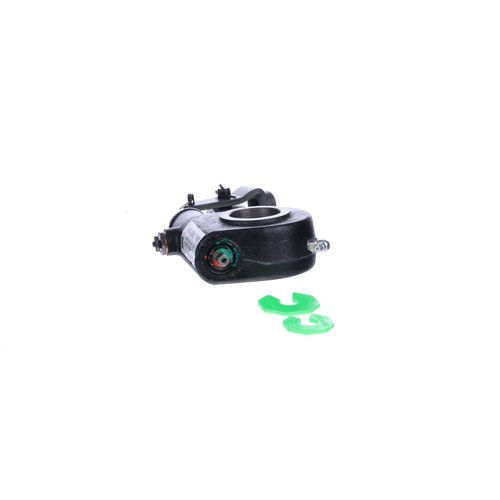

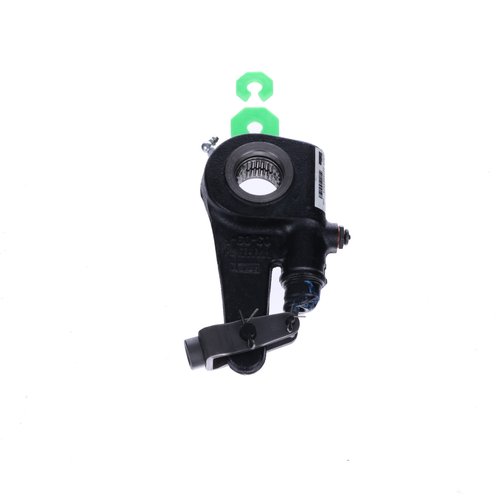

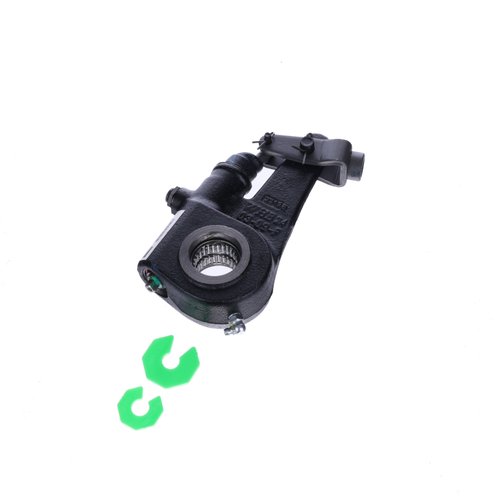

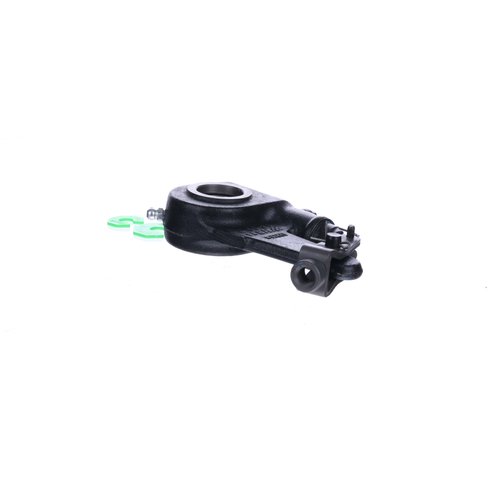

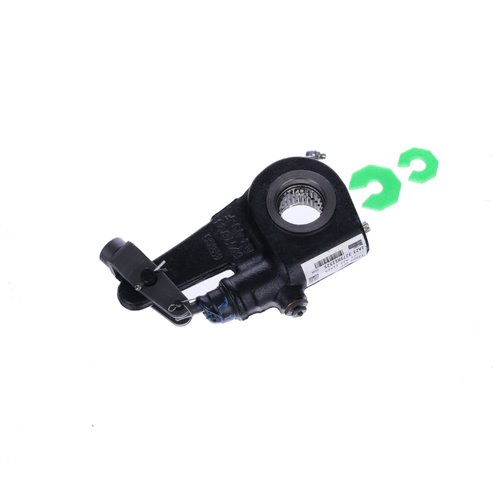

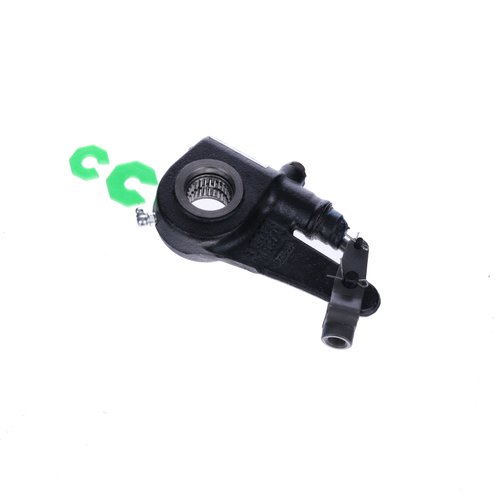

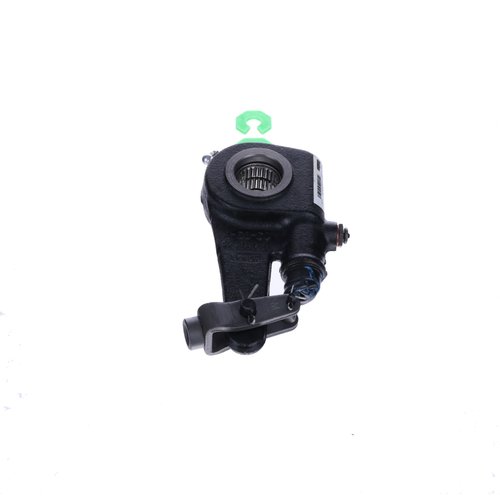

Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Alternate
Status:
Active
Weight:
7.00
Unit Pack:
1
Pallet Quantity:
280
UPC Code:
737238558798
Brand:
Meritor Genuine
Marketing Group:
Meritor
Production Part Number:
A24-3275-H-1152
Piston:
Red Piston
Type:
Unhanded
Clevis Type:
Straight
Arm Length:
5.50 in.
Slack Spline Diameter:
1.50 in.
Slack Spline Count:
28
Model:
Meritor
OE or AllMakes:
OE
OEM:
Meritor
Aftermarket Extended Warranty - Off-High:
3 Years / Unlimited Miles
Sensing Type:
Stroke
Aftermarket Extended Warranty - Linehaul:
5 Years / 500K Miles
Aftermarket Extended Warranty - Heavy Se:
3 Years / Unlimited Miles
Aftermarket Extended Warranty - General:
3 Years / Unlimited Miles
Chamber Sizes:
20
Notes:
Red piston. Drum brake.
VMRS Code:
013-017-005
Clevis Thread Diameter:
0.625 in.
Clevis Threads per inch:
18
Maximum Torque Rating:
More than 45 inch pounds
Related Unclevised Number:
R803108
Related Clevis Kit:
R810019
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP15102 - Meritor Stroke Sensing Automatic Slack Adjusters for the Aftermarket
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Video: |
Meritor Stroke ASA Video
|
| Warranty Information: |
SP16165 - Meritor Aftermarket Warranty
|
| Xpress Facts: |
Air Brake Product Information
|
Competitor
Part Number
Other
TWDR801079, WA65174, ZBRAS1040, ZBRAS1140, ZZCS56040
