Product Details
Specifications
BOM
Where Used
Production BOM
Reference Material
Part Interchange
Status:
Active
Weight:
3.67
Unit Pack:
1
Pallet Quantity:
24
UPC Code:
737238734345
Brand:
Meritor Genuine
Marketing Group:
Dust Shields
Brake Diameter:
15.00 in.
Brake Model:
Q Plus
Mount:
Screw/Cap Screw
Suspension Model:
Multiple Steer
Axle Type:
Steer
Brake Size:
15.00 in. X 4.00 in.
Offset:
1.15625 in.
Brake Shoe Width:
4.00 in.
Application Information:

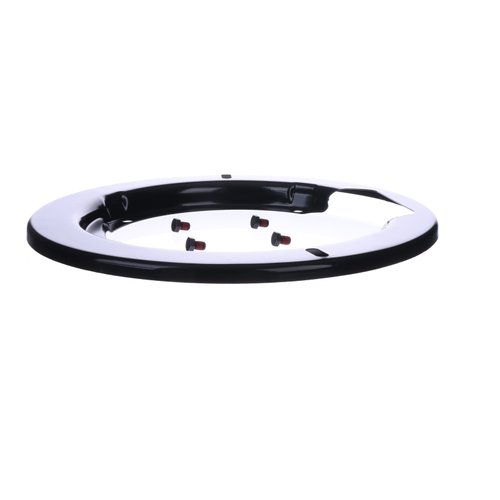

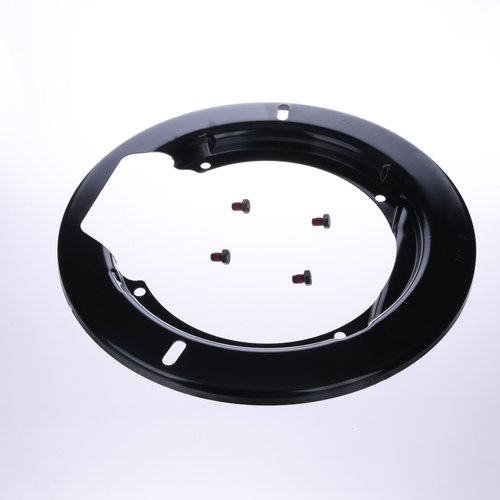

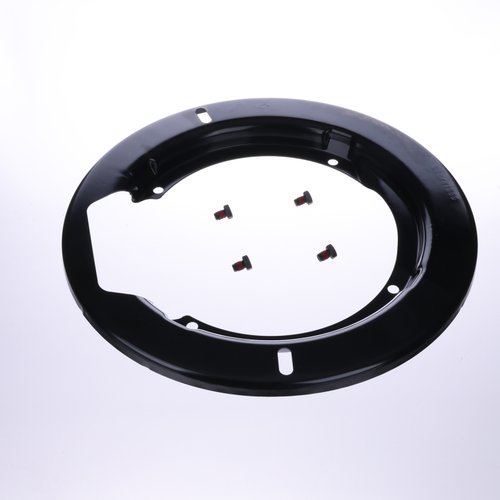

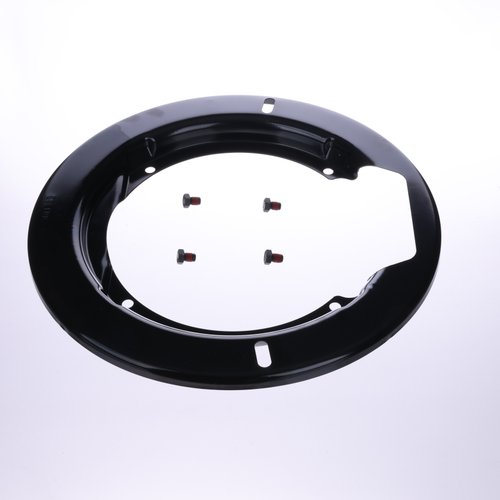

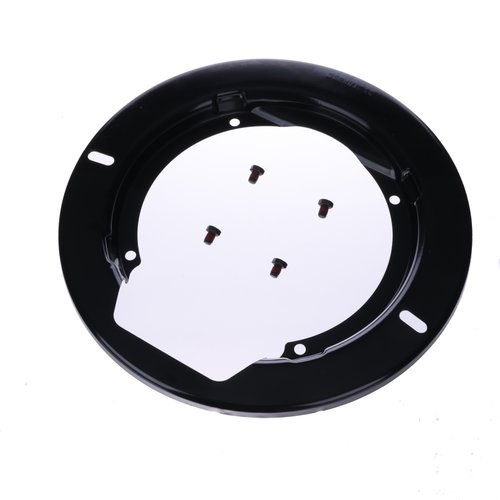

Use on 15 x 4 Q Plus brakes / contains 3264R1294 Dust Shield
Inner Diameter:
10.50 in.
Outer Diameter:
16.5625 in.
Hole Size:
0.4375 in.
VMRS Code:
013-017-000
Lip Height:
0.609375 in.
Number of Mounting Holes:
04
Bill of Materials:
Part No
Quantity
Description
Bill of Materials:
Part No
Quantity
Description
| Xpress Facts: |
Wheel End Product Information
|
Competitor
Part Number
Other
8235MPS4043, ATIMPS4043, MPS4043RI, TDAMPS4043
Model
