M807019

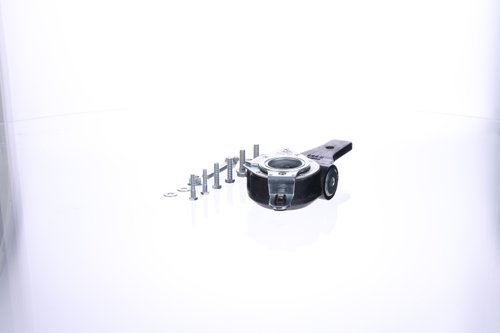

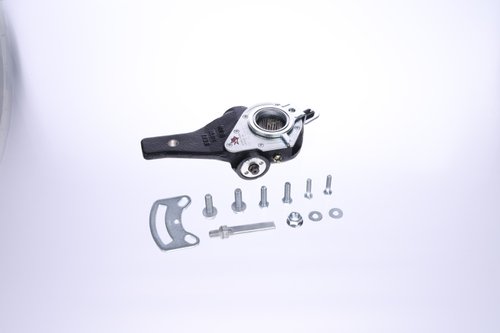

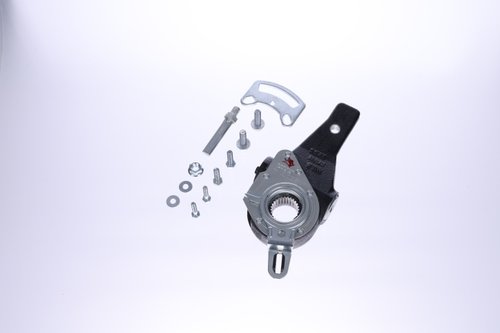

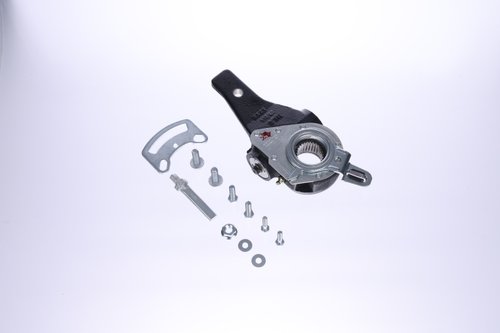

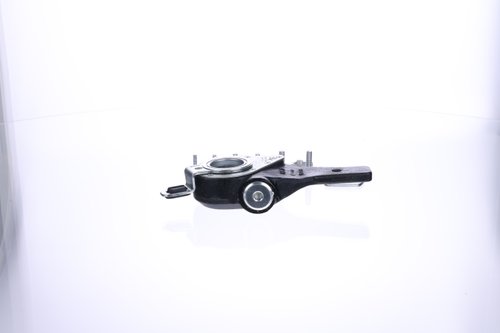

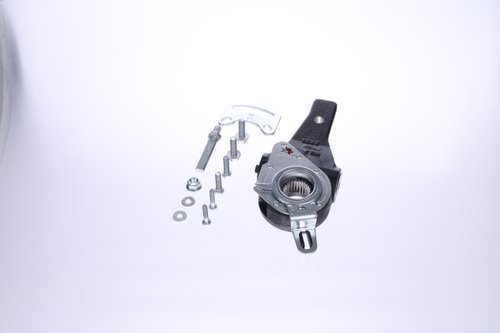

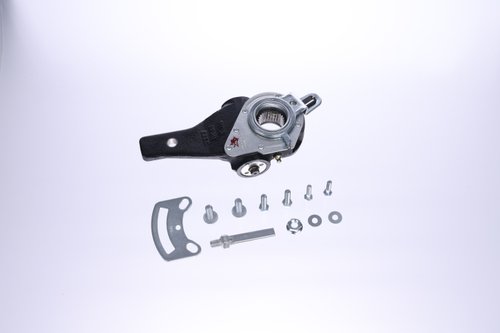

AIR BRAKE - ASA - HALDEX AA1 STYLE
Submit
Cancel
Locate Dealer / Distributor
Product Details
Specifications
Where Used
Reference Material
Part Interchange
Alternate
Visual Search
Status:
Active
Weight:
8.00
Unit Pack:
1
Pallet Quantity:
144
UPC Code:
884879824253
Brand:
Meritor
Marketing Group:
Haldex
Model:
AA1 Replacement
Production Part Number:
409-10683
Arm Length:
5.50 in.
Slack Spline Diameter:
1.50 in.
Slack Spline Count:
28
Sensing Type:
Clearance
Aftermarket Extended Warranty - Severe D:
2 Years / 100K Miles
Aftermarket Extended Warranty - Linehaul:
6 Years / 1 Million Miles
OEM:
Haldex
Type:
Unhanded
Brake Size:
16.50 in.
Application:
Trailer
Angle:
0 degrees
Bushing Inside Diameter:
0.50 in.
VMRS Code:
013-017-005
Service Part Number:
400-10211
Notes:
Premium version. Standard version is R806019A. Self-Setting alternative is M808019.
Clevis Type:
Unclevised
Maximum Torque Rating:
Less than 15 foot pounds
Related Bracket Number:
R810301
| Part Number | Description |
|---|
| Catalog: |
100AB - Euclid Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Sales Publication: |
SP1638 - Meritor AllFit SimpleCheck Brake Stroke Tool
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Sales Publication: |
SP1639 - Meritor Clearance-Sensing Automatic Slack Adjusters
|
| Technical Bulletin: |
TP0545 - Installation and Maintenance of the Meritor Clearance Sensing Automatic Slack Adjuster
|
| Warranty Information: |
SP16165 - Meritor Aftermarket Warranty
|
| Xpress Facts: |
Air Brake Product Information
|
Competitor
Part Number
Automann
1352840
Haldex
40010211, 40910683
TSE
TSE07135A
Other
135284, 1697569C91, 3946257, 4W8035, 8235M807019, HAL40010211, TDAM807019
