Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Alternate
Visual Search
Status:
Active
Weight:
1.00
Unit Pack:
1
Pallet Quantity:
1000
UPC Code:
737238467908
Brand:
Meritor Genuine
Marketing Group:

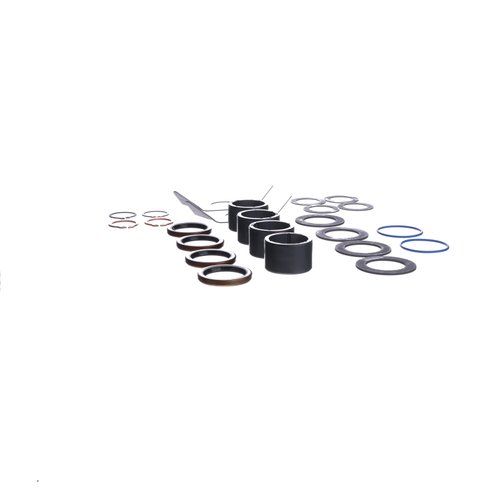

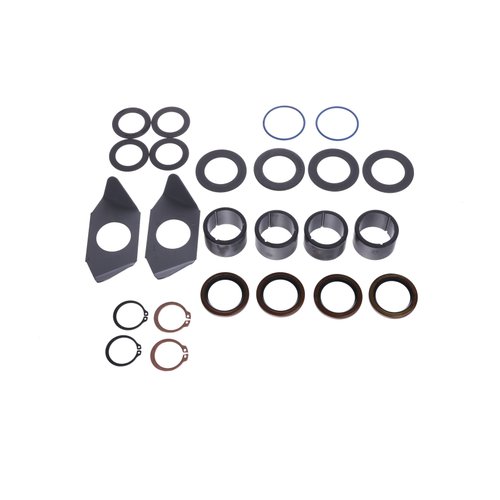

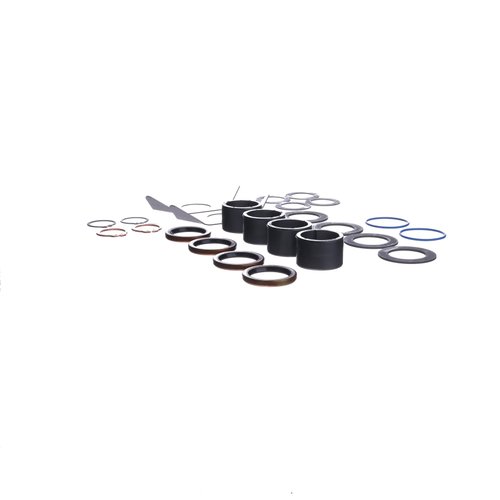

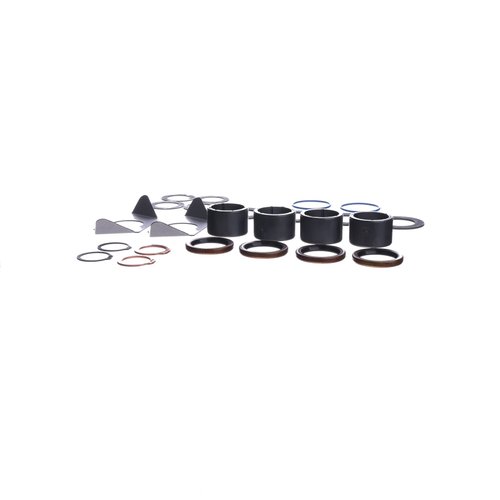

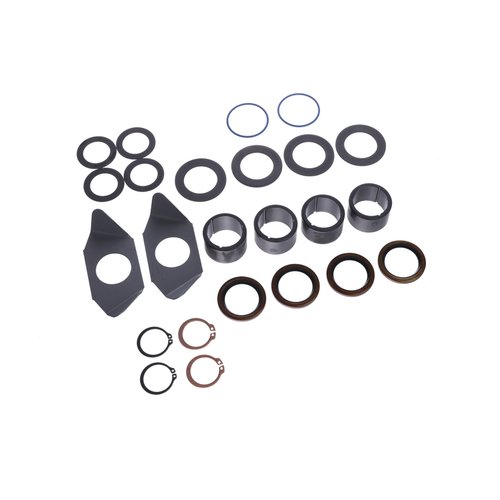

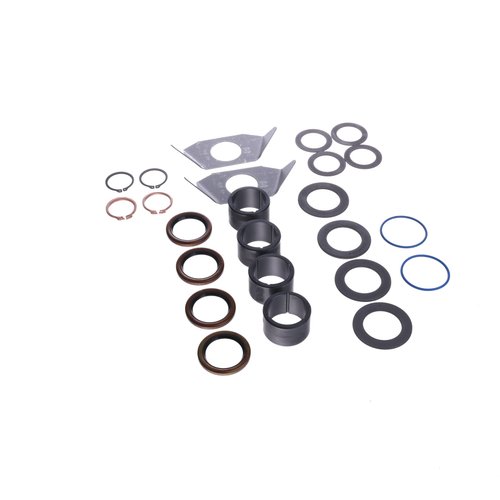

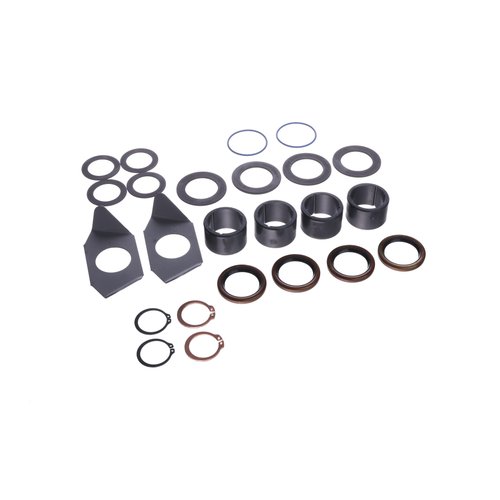

Camshafts Repair Kits
OE Mfg.:
Meritor
Repair Content:
Full Kit - services two wheel ends
Application:
Drive or Steer
Brake Diameter:
15.00 in. or 16.50 in.
Brake Type:
Q & Q Plus
Notes:
Drive axles with 1-1/2 camshaft spline diameter and 28 spline. Nylon bushing and seal kit for all 16-1/2 in. P and Q brakes. Services 1 brake.
VMRS Code:
013-017-014
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Catalog: |
PB8857 - Meritor Drum Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Xpress Facts: |
Air Brake Product Information
|
Competitor
Part Number
Automann
1102207, 1102224, 1102229
BWP
MK81
Dana
08131800, 437047, 437047
Dayton Parts Batco
08131800, 08138100
Eaton Top Spec
62253
Fleetrite
FLTCSKIT142
Haldex
CQ67387
Hercules
H8707, HCK1425
Uni-Bond
CRK8828
Other
KIT8042BZ, KIT8042RI, MERKIT8042, OTR3993B, RIKIT8042, ROKIT8042, RWKIT8042, SE809, TA437048, TDAKIT8042, TW08131800, TWDKIT8042, WA085008
Model
