Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Status:
Active
Weight:
.58
Unit Pack:
1
Pallet Quantity:
1000
UPC Code:
680502165720
Brand:
Meritor Genuine
Marketing Group:
Camshafts Repair Kits
OE Mfg.:
Meritor
Repair Content:
Half Kit - services one wheel end
Camshaft Journal:
1.625 in.
Notes:

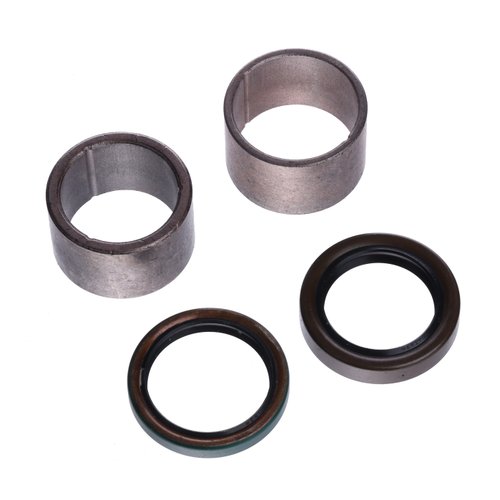

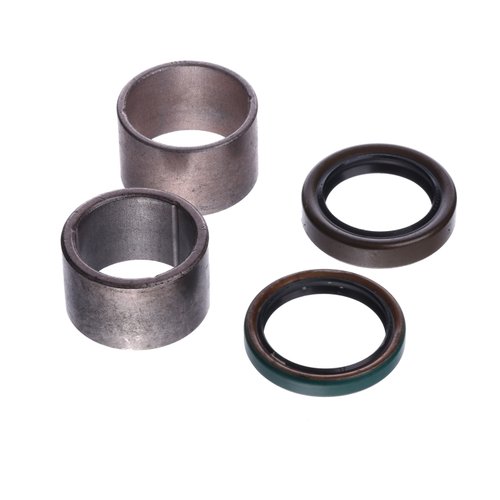

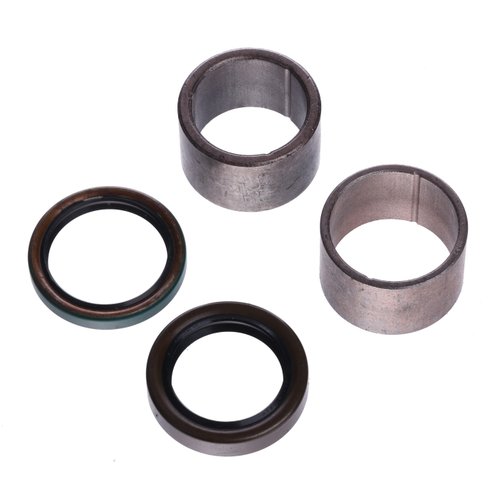

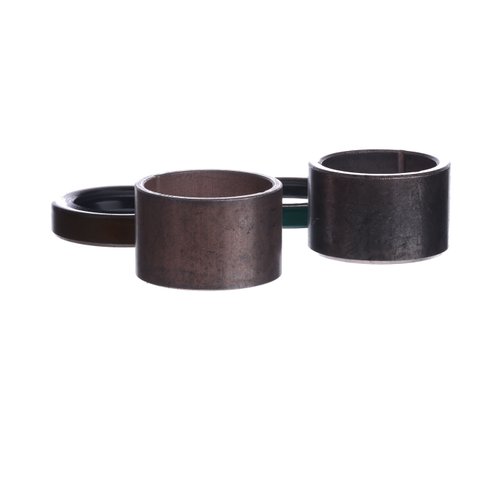

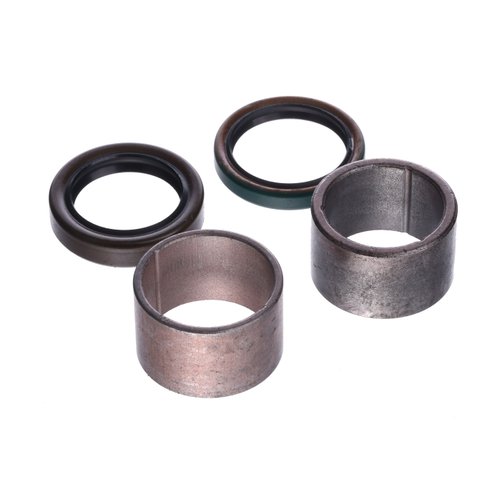

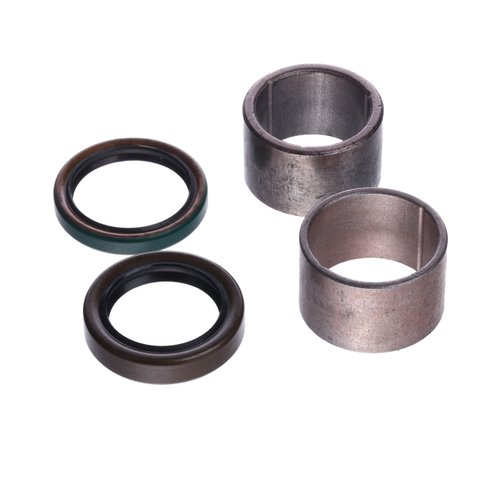

For LX/MX500 brakes. Bushing and seal kit includes extended lube seal.
Brake Diameter:
16.50 in.
Brake Type:
Q & Q Plus
VMRS Code:
013-017-008
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Xpress Facts: |
Air Brake Product Information
|
Competitor
Part Number
Other
8235KIT8033F, ATIKIT8033F, HRKIT8033F, KIT8033FRI, RIKIT8033F, ROKIT8033F, TDAKIT8033F
Model
