E-BC2024C

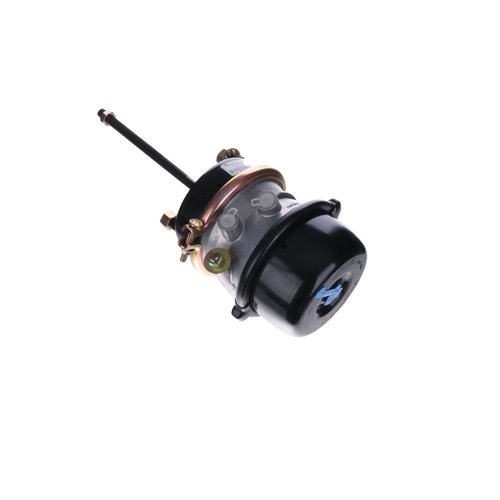

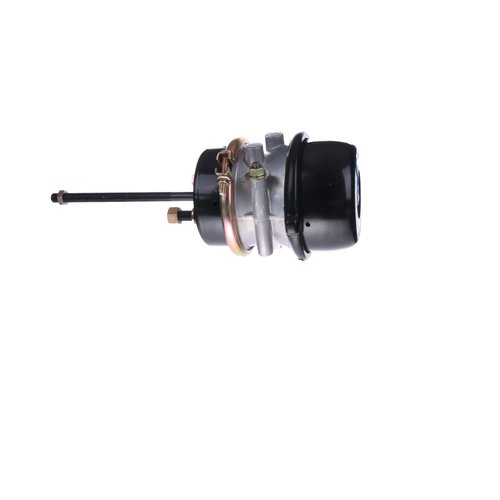

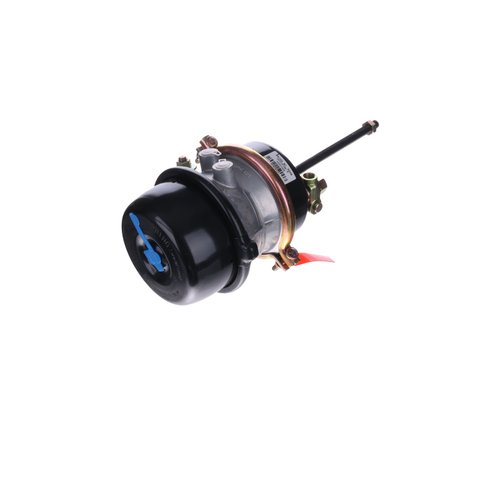

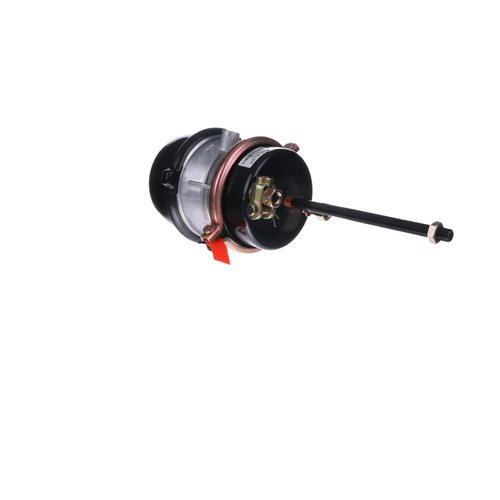

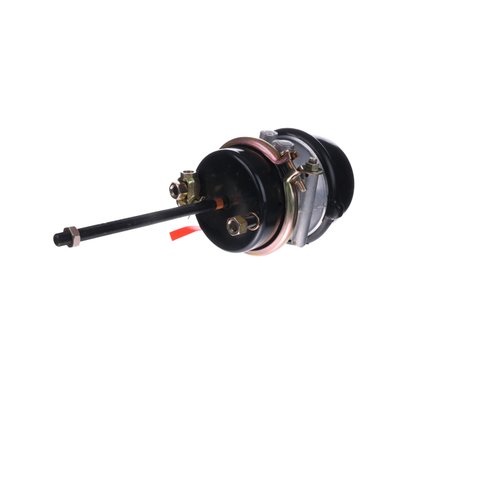

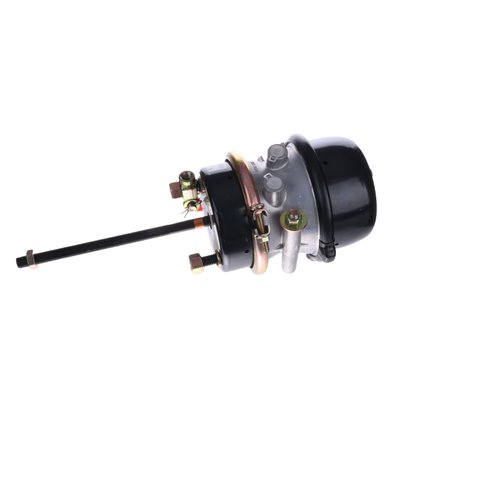

SPRING BRAKE CHAMBER ASSEMBLY
Submit
Cancel
Exclusive - Distributor Channel
Qty
Locate Dealer / Distributor
Product Details
Specifications
Where Used
Reference Material
Status:
Active
Weight:
16.86
Unit Pack:
1
Pallet Quantity:
48
UPC Code:
729374550637
Brand:
Euclid
Marketing Group:
Combination Units
Chamber Type:
Spring Brake
Stroke:
2.25 in.
Model:
Type 20/24
Brake Type:
Drum
Thread Diameter:
5/8" - 18 UNF
Aftermarket Extended Warranty - Linehaul:
3 Years / Unlimited Miles
Clevis:
Threaded
Push Rod Length (Aftermarket):
7.7 in.
VMRS Code:
013-004-027
Application and General Information:
Sealed spring brake combination unit for S-Cam brakes
| Part Number | Description |
|---|
| Catalog: |
100AB - Euclid Brake and Wheel End Catalog
|
| Inspection Guideline: |
TP1363 - Inspecting Foundation Cam Brakes
|
| Maintenance Manual: |
MM4 - Cam Brakes & ASAs Maintenance Manual
|
| Sales Publication: |
SP14137 - Brake Job Critical-Review Components
|
| Sales Publication: |
SP1688 - Euclid Brake Chambers
|
| Sales Publication: |
SP1980 - The Complete Brake Job
|
| Xpress Facts: |
Air Brake Product Information
|
