Exclusive - Distributor Channel
Qty
Locate Dealer / Distributor
Product Details
Specifications
Where Used
Reference Material
Part Interchange
Alternate
Status:
Active
Weight:
44.10
Unit Pack:
1
Pallet Quantity:
28
UPC Code:
884879734026
Brand:
Euclid
Marketing Group:

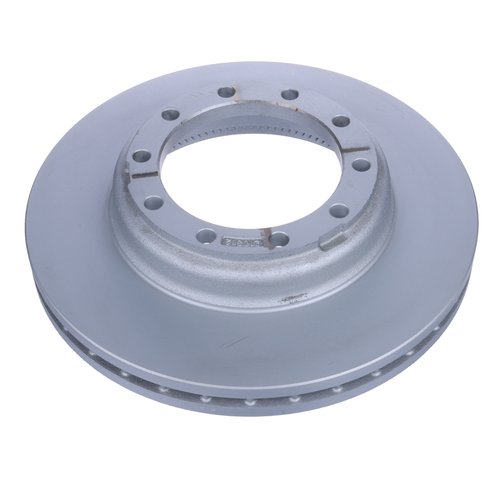

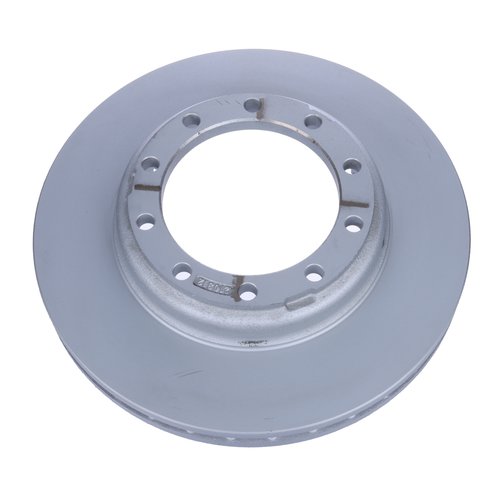

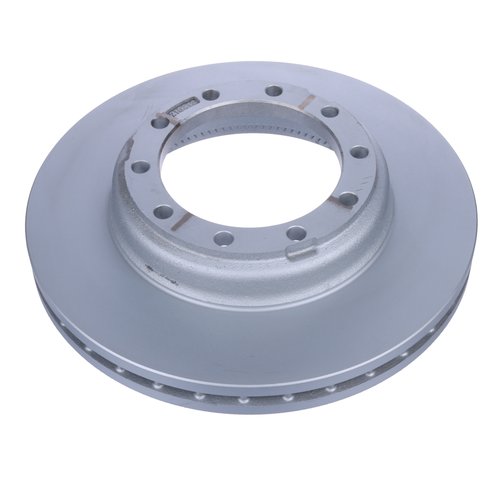

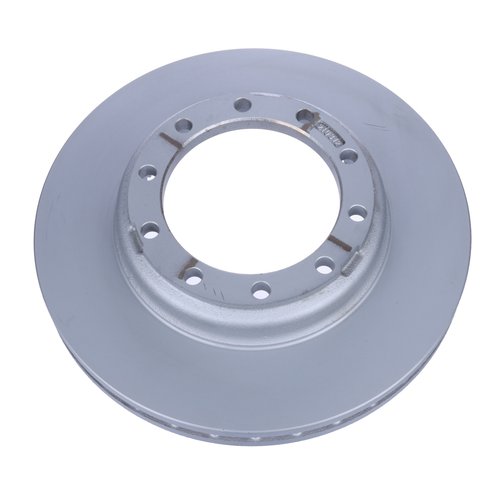

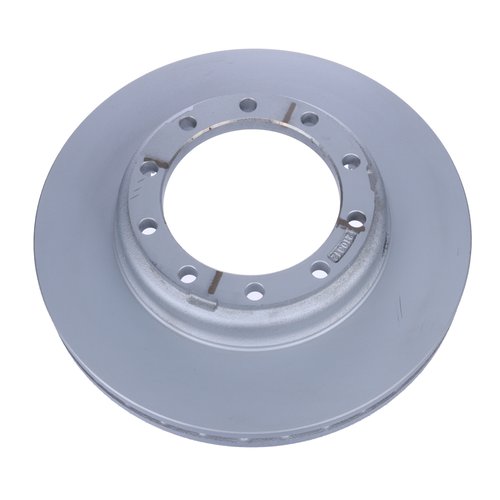

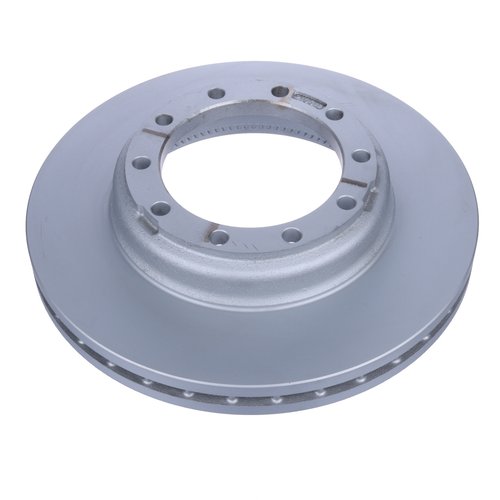

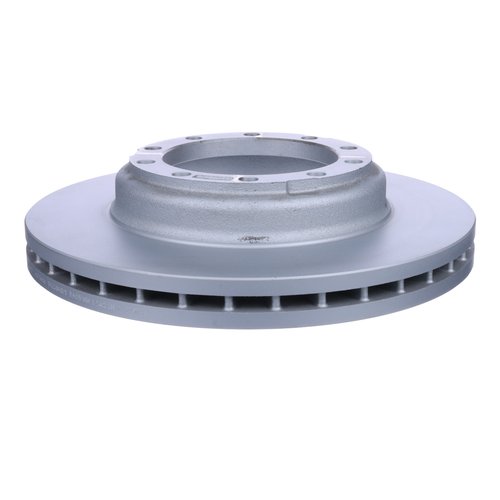

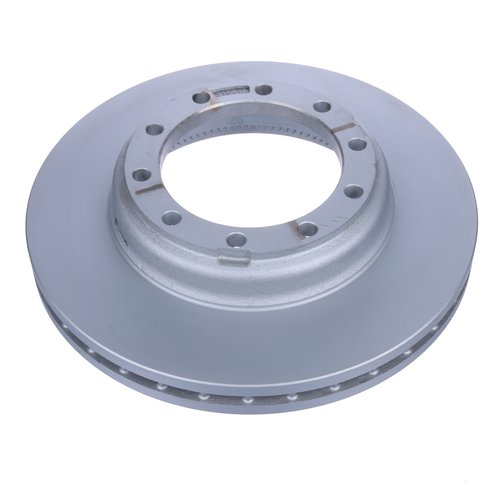

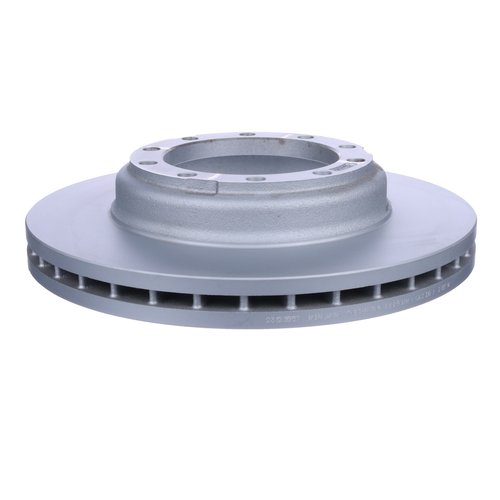

Hat-Shaped
Rotor Depth:
3.40 in.
Pilot Diameter:
6.00 in.
Bolt Hole Number:
10
New Disc Thickness:
1.54 in.
Outside Diameter:
15.38 in.
Type:
Hat
Application:
Several Medium Duty Vehicle Sizes and Name Plates
Bolt Circle Diameter:
7.25 in.
Bolt Hole Diameter:
0.59 in.
Discard Thickness:
1.42 in.
VMRS Code:
013-017-001
| Part Number | Description |
|---|
| Sales Publication: |
SP1044 - Euclid Hydraulic Brake Rotors with PlatinumShield II Coating
|
| Xpress Facts: |
Hydraulic Brake Product Information
|
Competitor
Part Number
Automann
153123557
Dayton Parts Batco
123557
Webb
54775P65, 54775P98
BRAND
Part Number
Additional Information
Meritor Genuine
Genuine OEM
Meritor Genuine
Genuine OEM
Euclid
High Quality All-Makes
Meritor Genuine
No ABS
Euclid
No ABS
Model
