Exclusive - Distributor Channel
Qty
Locate Dealer / Distributor
Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Alternate
Status:
Active
Weight:
.24
Unit Pack:
1
Pallet Quantity:
1000
UPC Code:
729374503633
Brand:
Euclid
Marketing Group:
Dust Shields
Brake Model:
Multiple
Brake Diameter:
16.50 in.
Mount:
Screw/Cap Screw
Brake Size:
16.50 in.
Application Information:

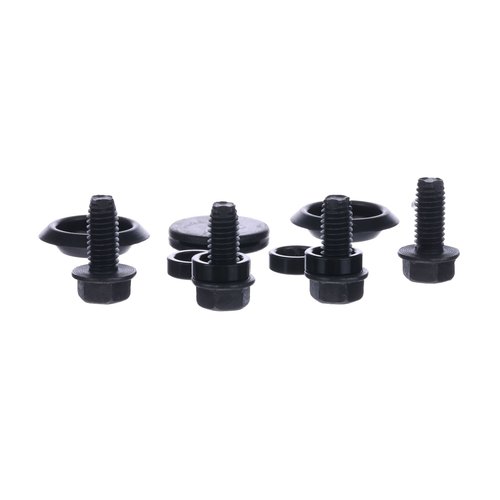

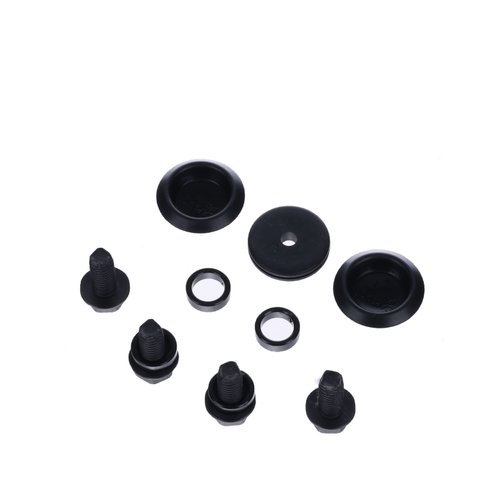

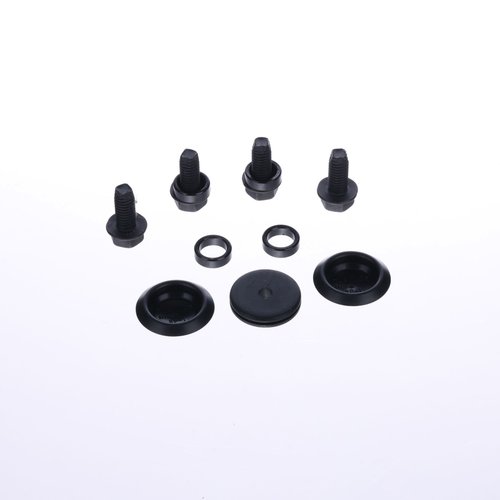

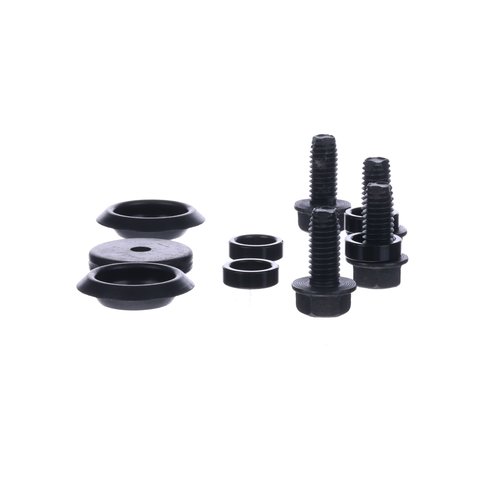

Dust Shield Mounting kit for Meritor fabricated steel spiders. For use with E-9095 Dust Shield Services one Dust Shield Torque spec 25-35 ft lb
VMRS Code:
013-017-000
Bill of Materials:
-
2AIR BRAKE - DUST SHIELD PLUG
-
1AIR BRAKE - DUST SHIELD HARDWARE
-
4CAMSHAFT HARDWARE
-
4AIR BRAKE - MISCELLANOUS FRICTION HARDWARE
Quantity
Description
| Part Number | Description |
|---|---|
| E9095A | DUST SHIELD |
| E9095AHD | DUST SHIELD |
| E9095AHDBK | DUST SHIELD |
| Catalog: |
100AB - Euclid Brake and Wheel End Catalog
|
| Xpress Facts: |
Wheel End Product Information
|
Competitor
Part Number
Automann
1561011
Model
