Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Status:
Active
Weight:
45.62
Unit Pack:
1
Pallet Quantity:
8
Related Core Group:
MC310
Related Core Number:
XM2611
UPC Code:
884879993782
Brand:
Meritor
Marketing Group:
Wabco Pan 17 - Pad Length 6.91
Pads Included:
No
Left or Right:
Left
Distance A-B:
2 in.
Axial or Radial Mount:
Axial
New or Reman:
New
Carrier Mounting Holes:
6
Mounting Hole Size:
M14 X 1.5
Model:
Pan 17
FMSI:
1518
OEM:
Wabco
Brake Chamber Angle:
8 degrees
Chamber Position:
Axial
Numbers Of Pistons:
1
Related Disc Pad Number:
MMD1518AG; 12999806; ED1518S
Chamber Mount:
Axial 8 degrees
Application:
Trailer suspension with 17.5 in. wheels
VMRS Code:
013-013-001
Pad Length:
6.91 in.
Related Hardware Kit:
Not Sold Separately
Notes:

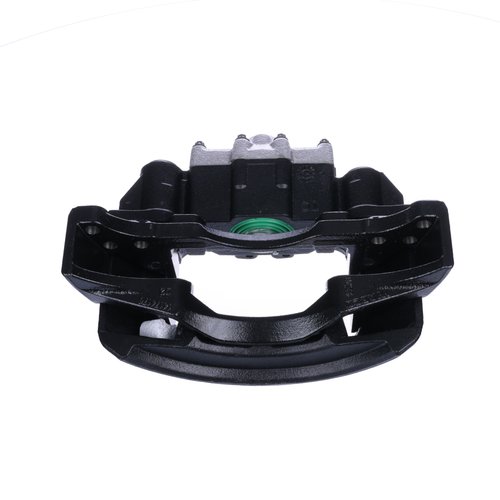

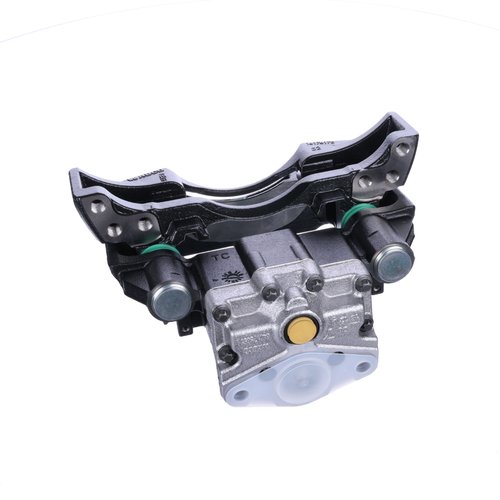

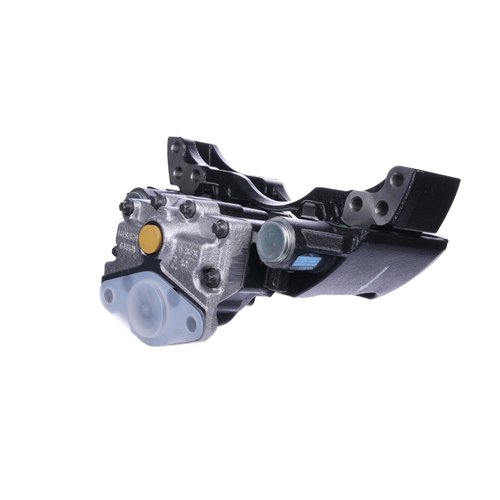

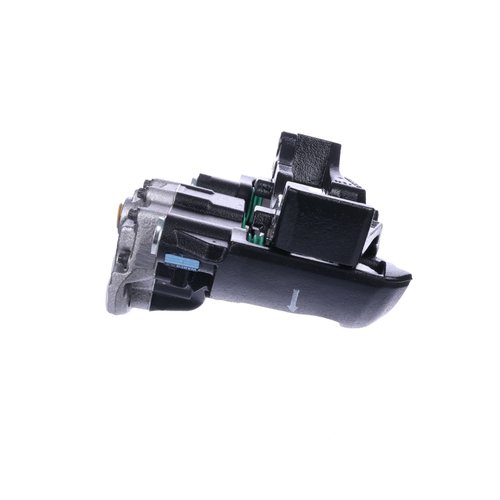

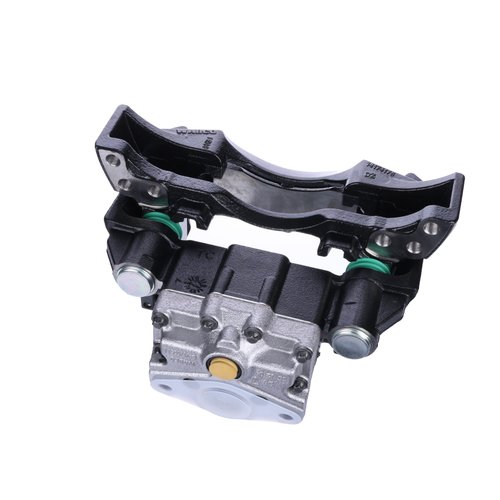

Pan 17 Service Caliper with out pads; Initial use on DAF Type LF 45
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Catalog: |
PB1461 - Meritor Air Disc Brake Catalog
|
| Xpress Facts: |
Air Disc Brake Product Information
|
Competitor
Part Number
Other
TDA40175072NX
Model
