Product Details
Specifications
Where Used
Reference Material
Part Interchange
Status:
Active
Weight:
10.57
Unit Pack:
1
Pallet Quantity:
100
UPC Code:
680502029510
Brand:
Meritor Genuine
Marketing Group:
RPL20 Series
Spline Diameter:
2.024 in.
Series:
RPL20
Number of Splines:
39I
Hub Diameter:
3.00 in.
Spline Length:
2.31 in.
Counter Bore Depth:
0.09 in.
Face To End:
4.85 in.
Use U-Joint Kit:
CP20RPLS
Joint Angle:
32 degrees
VMRS Code:
024-001-003
Bearing Cap Diameter:
2.06 in.
Use Kit:
KIT RPL 25 20
Yoke Dimension Across Nibbs:
7.06 in.
Part Number | Description |
---|---|

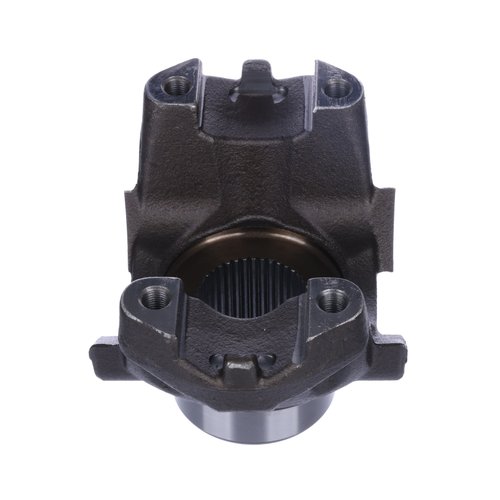

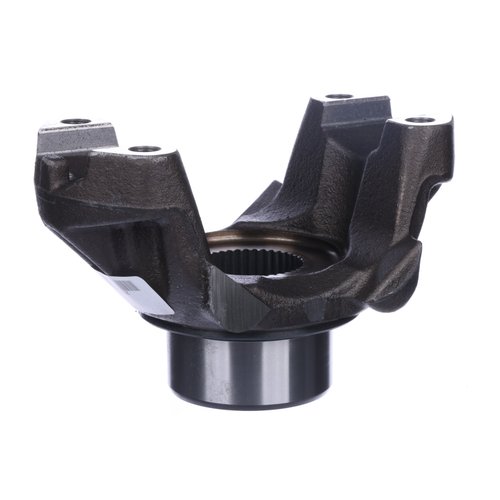

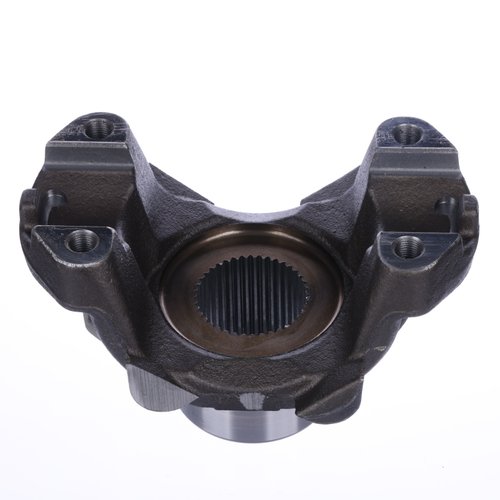

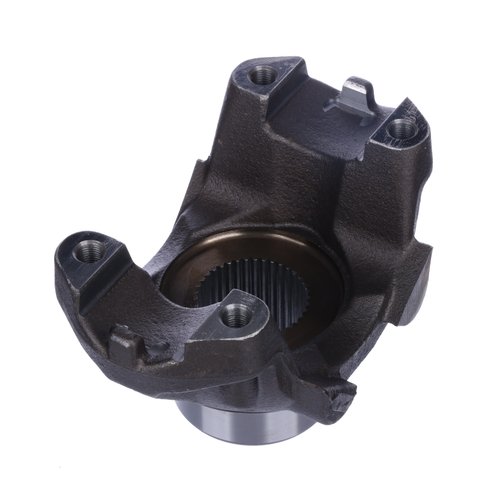

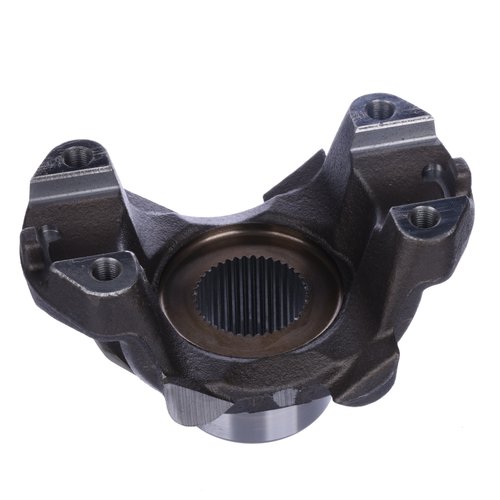

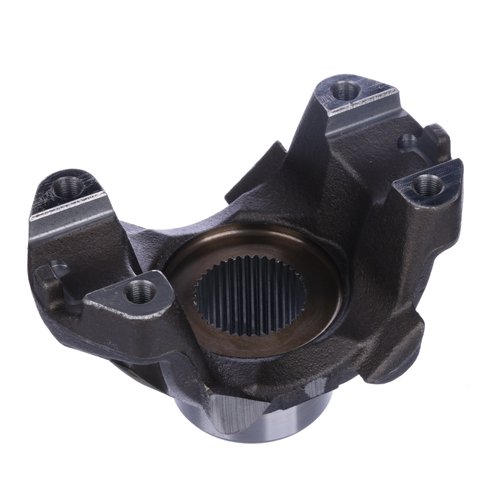

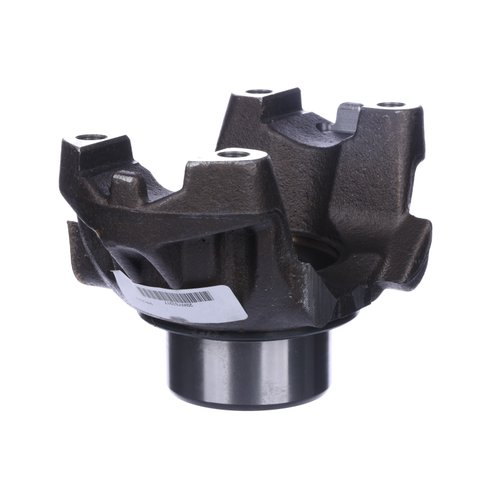

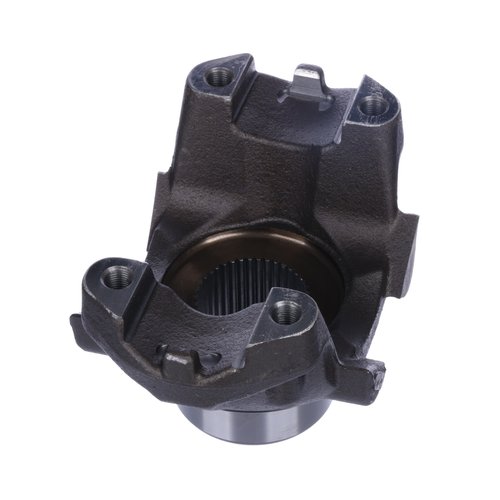

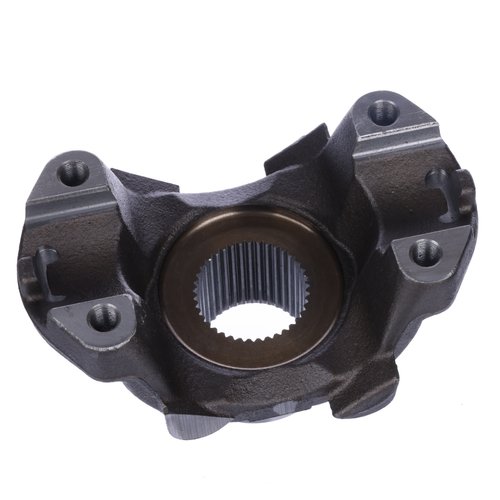

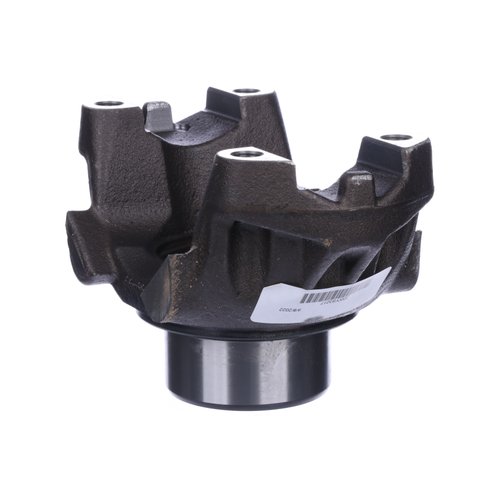

END YOKE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE | |
AXLE ASSY-DRIVE |
Reference Material: |
For measuring guideline instructions: Click here
|
Xpress Facts: |
Driveline Product Information
|
Competitor
Part Number
Neapco
N20WYS3217
Other
20WYS3217A, 20WYS3217RI, 2501143C1, 823520WYS3217, ATI20WYS3217, HR20WYS3217, RD20WYS3217, S17601, TDA20WYS3217
