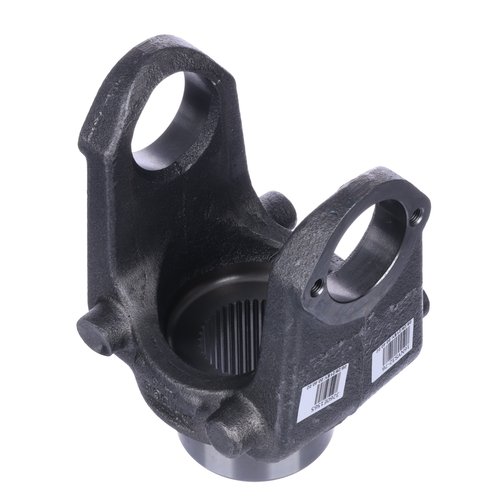

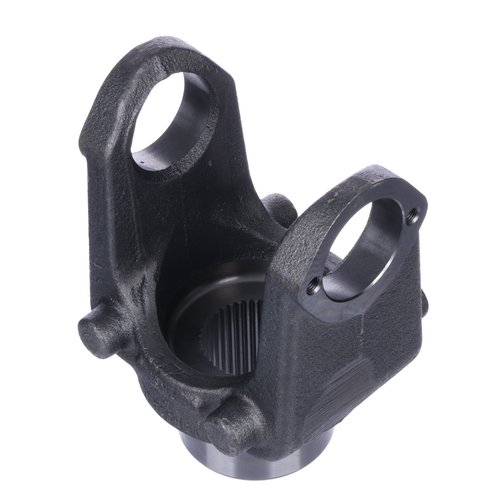

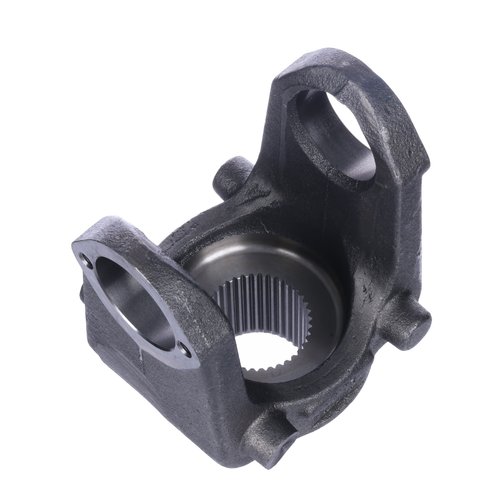

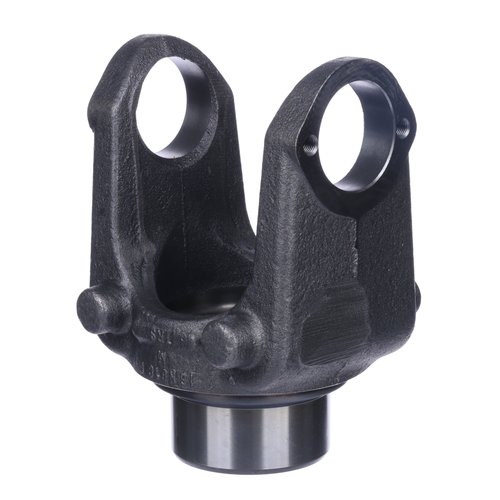

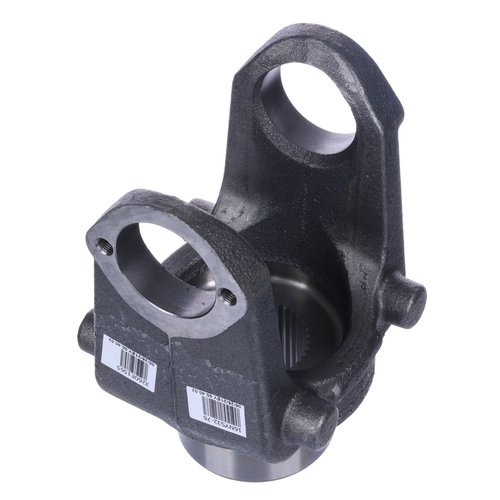

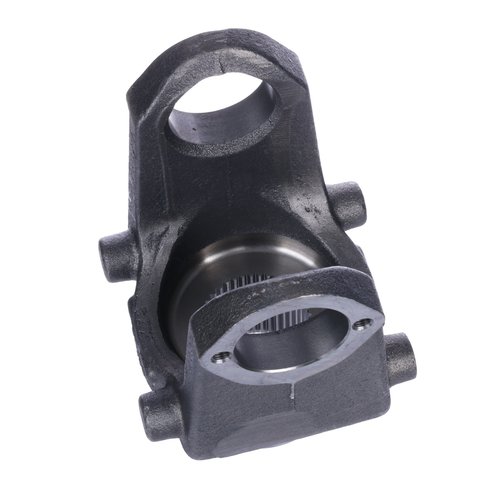

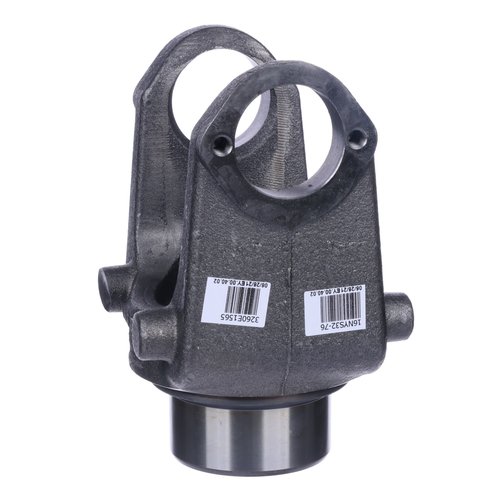

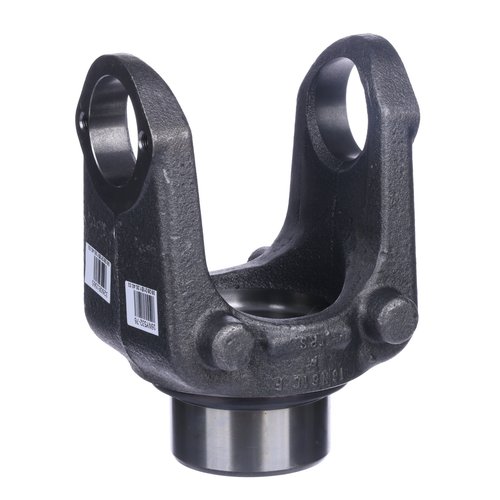

Product Details
Specifications
BOM
Where Used
Reference Material
Part Interchange
Status:
Active
Weight:
11.94
Unit Pack:
1
Pallet Quantity:
100
UPC Code:
737238306252
Brand:
Meritor Genuine
Marketing Group:
16N Series
Spline Diameter:
2.024 in.
Series:
16N
Number of Splines:
39I
Hub Diameter:
3.00 in.
Spline Length:
2.31 in.
Center To End:
6.22 in.
Counter Bore Depth:
0.09 in.
Joint Angle:
45 degrees
Use U-Joint Kit:
M279X
Comments:
Dana Spline Not Involuted
VMRS Code:
024-001-003
Bearing Cap Diameter:
1.88 in.
Yoke Dim. Across Ears:
5.31 in.
Bill of Materials:
Part No
Quantity
Description
| Part Number | Description |
|---|
| Reference Material: |
For measuring guideline instructions: Click here
|
| Xpress Facts: |
Driveline Product Information
|
Competitor
Part Number
Dana
546241
Neapco
N546241
Other
823516N46241, ATI16N46241, E8HZ4465A, MER16N46241, S18477, TDA16N46241
Model
